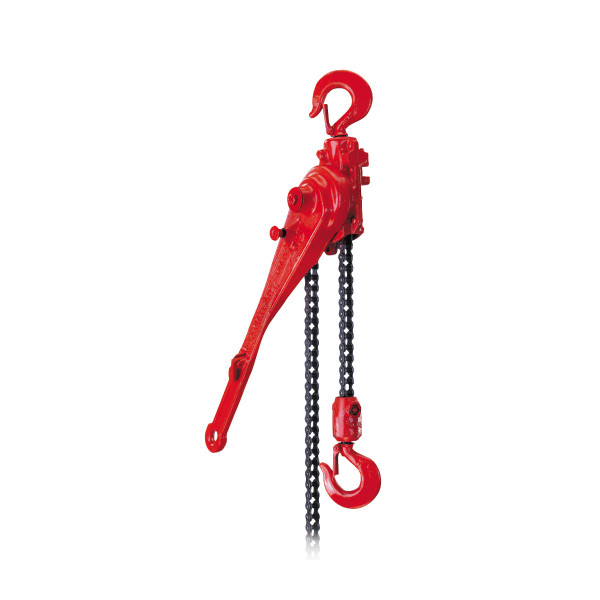

Coffing G-Series Ratchet Lever Hoist

3/4, 1-1/2, 3, 4-1/2, 6, 9, 11, 13 and 15 Ton Capacities with 53, 56-1/2, 57 and 60-Inch Lifts.

Coffing G-Series Ratchet Lever Hoists feature a malleable iron roller chain ratchet lever, and are efficient and durable. Roller chain can be spliced to create longer lifts and can handle higher capacities than coil chain. G-Series hoists are ideal for utility transmission and distribution work.

Coffing Logo

Description

Features & Benefits:

  • Unit and handle made from malleable iron. Riveted construction makes the unit tamper-resistant.
  • Free chaining mechanism allows quick and easy take-up and positioning of slack chain. Hoist will not free chain when under load.
  • Handle stops prevent handle from spinning if it is accidentally released by the operator.
  • Single or double locking pawl design.
  • Hoist can lift, pull or bind. Can be operated from either side and will work in any position with equal efficiency.
  • Allows operator to convert unit to next smaller capacity to give longer lift and faster operation. Snap hook acts as an end stop and will not pass through chain sprocket.
  • Options—Bullard® hooks, bronze hooks and zinc plated hooks.
  • Lifetime warranty

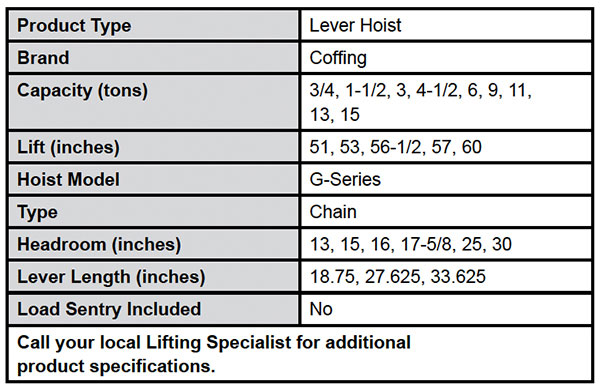

G-Series Ratchet Lever Hoist Specs

NEED HOIST REPAIR OR PARTS?

We do repairs in-house and stock a full line of parts.

Brand

Coffing

Widely recognized in manufacturing plants across the globe, Coffing Hoists offers a diverse range of lifting and positioning products, including manual and powered hoists and trolleys. Coffing provides economical, user-friendly hand chain hoists and lever tools for maintenance and repair staff. To maximize production within the plant, Coffing's line of powered hoists stands for reliability and efficiency.
