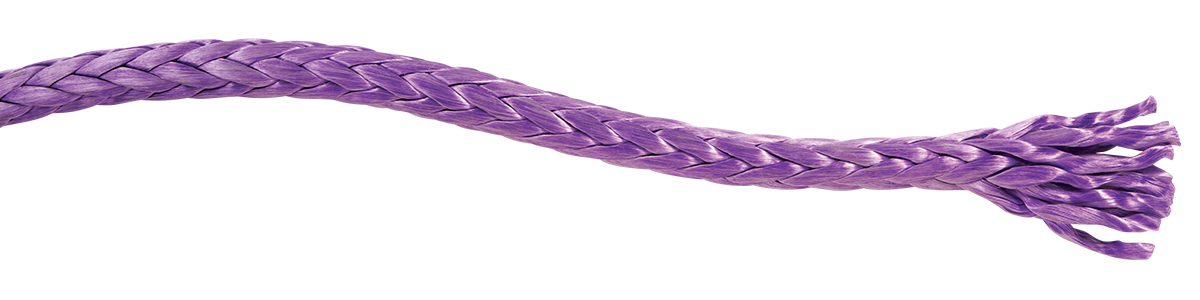

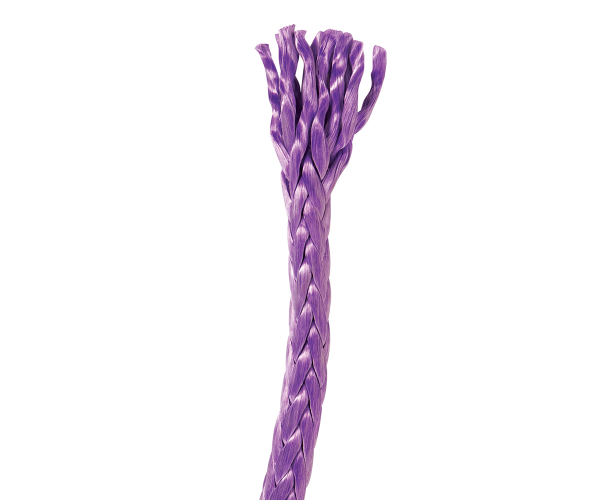

Description
Features and Benefits:
- Highest strength
- Lowest stretch
- Low creep
- Soft hand
- Torque-free
- Easy splicing
- Floats
Applications:
- Replacement for wire rope
- Vessel mooring lines
- Inland river barge lines
- Lifting slings
- Recreational vehicle winch lines
- Utility winch and pulling lines
- Theatrical rigging
Certifications:
- ABS
- DNV-GL
Nominal Diameter (inches) | Size (circ in.) | Approximate Weight (lbs/100ft) | Minimum Tensile Strength Spliced Rope (lbs) | Minimum Tensile Strength ISO Unspliced Rope (lbs) |
---|---|---|---|---|
0.04 | 0.12 | 0.05 | 270 | 300 |
0.05 | 0.15 | 0.07 | 390 | 430 |
0.06 | 0.18 | 0.1 | 475 | 525 |
0.07 | 0.21 | 0.14 | 750 | 830 |
0.1 | 0.3 | 0.27 | 1,400 | 1,550 |
1/8 | 3/8 | 0.54 | 2,800 | 3,100 |
3/16 | 9/16 | 1.12 | 5,500 | 6,100 |
1/4 | 3/4 | 1.6 | 8,000 | 8,890 |
5/16 | 15/16 | 2.5 | 11,700 | 13,000 |
3/8 | 1-1/8 | 3.7 | 17,500 | 19,400 |
ABS and DNV Type Approved Sizes | ||||
7/16 | 1-1/4 | 4.2 | 21,000 | 23,400 |
1/2 | 1-1/2 | 6.4 | 31,300 | 34,800 |
9/16 | 1-3/4 | 7.9 | 37,900 | 42,100 |
5/8 | 2 | 10.6 | 51,400 | 57,100 |
3/4 | 2-1/4 | 13.3 | 68,500 | 76,300 |
13/16 | 2-1/2 | 15.9 | 74,000 | 82,200 |
7/8 | 2-3/4 | 19.6 | 92,600 | 102,900 |
1 | 3 | 23.4 | 110,000 | 122,100 |
1-1/16 | 3-1/4 | 27.5 | 129,200 | 143,500 |
1-1/8 | 3-1/2 | 31.9 | 147,000 | 163,300 |
1-1/4 | 3-3/4 | 36.2 | 165,000 | 183,100 |
1-5/16 | 4 | 41.7 | 196,000 | 217,800 |
1-1/2 | 4-1/2 | 51.7 | 221,000 | 245,500 |
Tensile strengths are determined in accordance with Cordage Institute 1500.2. Test Methods for Fiber Rope. Minimum Tensile Strength (MTS) published assumes spliced eye terminations at each end of the rope. Weights actually calculated at linear density under stated preload (200d2 ) plus 4%. Diameter and circumference size published is nominal and reflects rope size after loading (10 cycles) to 50% of MTS. See reverse side for application and safety information.
Technical Information
- Specific gravity: 0.98*
- Melting point: 284°F (140°C)
- Critical temperature: 150°F (65°C)
- Coefficient of friction: 0.09–0.12*
- Elongation at break: 3%–4%
- Fiber water absorption: 0%
- UV resistance: moderate
- Wet abrasion: superior
- Dry abrasion: superior
* Value based on data supplied by the fiber manufacturer for new, dry fiber
