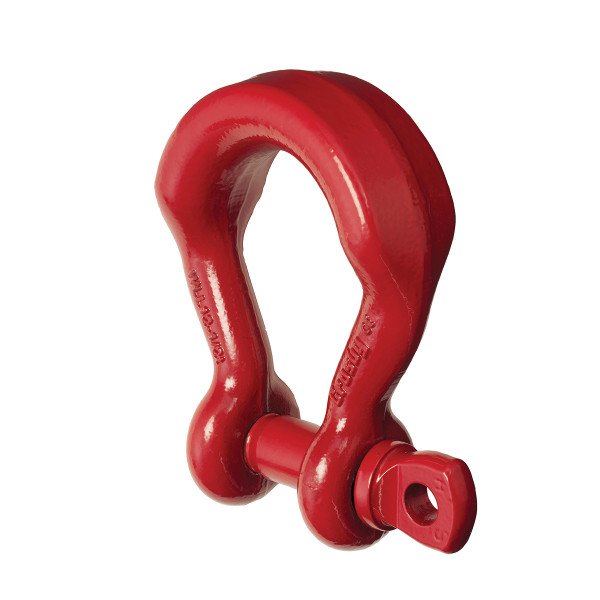

Crosby G-2169 / S-2169 Screw Pin Wide Body Shackles

  • Capacities of 7, 12.5 and 18 metric tons.
  • Quenched and Tempered for maximum strength.
  • Forged Alloy Steel.

Description

  • Available in galvanized and self colored finished.
  • Individually proof tested and magnetic particle inspected. Crosby certification available at time of order.
  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
  • Look for the Red Pin®…the mark of genuine Crosby quality.

G-2169 / S-2169 Screw Pin Wide Body Shackles

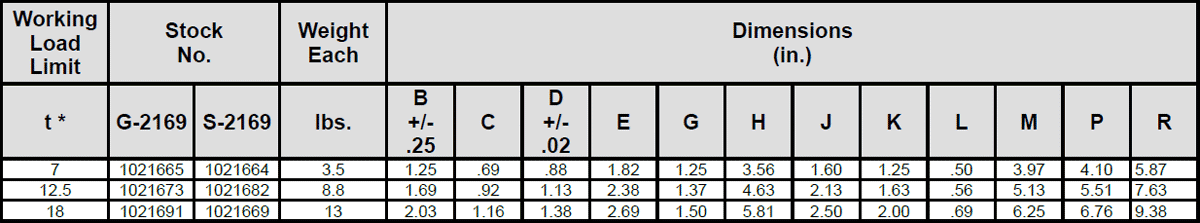

G-2169 / S-2169 Screw Pin Wide Body Shackles Specs

* Note: Ultimate Load is 5 times the Working Load Limit. Forged Alloy Steel. Proof Load is 2 times the Working Load Limit.



All product warnings: Warnings Page
