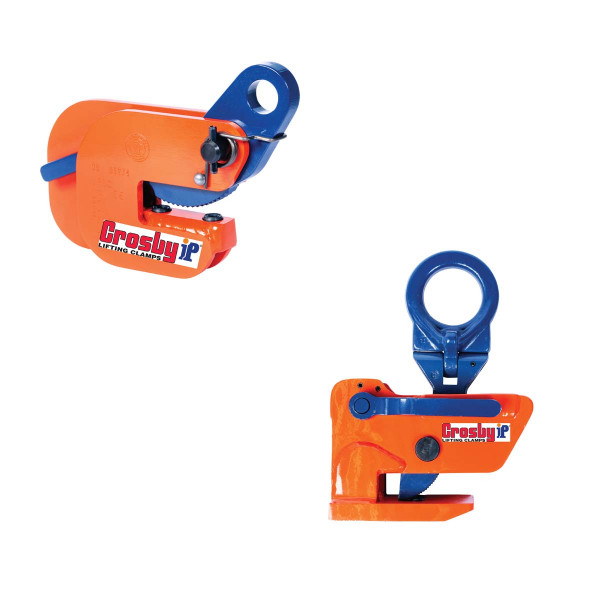

Crosby IPBC / IPHGUZ Horizontal Clamps

The IPBC Horizontal Lifting Clamps have a pretension feature that allows the user to attach the clamps to the material for horizontal lifting and transfer of sagging and non-sagging material. These clamps may also be used to handle material that will be used in shears, bending and rolling machines or other fabrication equipment. May also be used for turning beams from the “H” into the “I” position.


The IPHGZ / IPHGUZ Horizontal Lifting Clamps have a pretension locking feature that allows the user to attach the clamps to the material for horizontal lifting and transfer of sagging and non-sagging material. These clamps may also be used to handle material that will be used in shears, bending and rolling machines or other fabrication equipment. May also be used to move and lift structural shapes such as I-Beams, H-beams etc.

Crosby Logo

Description

For Horizontal Transfer – with Pretension System

  • Available in capacities of 1 thru 4.5 metric tons.
  • Jaw openings available: 0 to 40mm.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
  • Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included on the test certificate with maintenance and warranty logbook.
  • Maintenance replacement parts are available.
  • Manufactured by a ISO 9001 facility.
  • All sizes are RFID EQUIPPED.



IPBC / IPHGUZ Horizontal Clamps (Crosby) Diagram

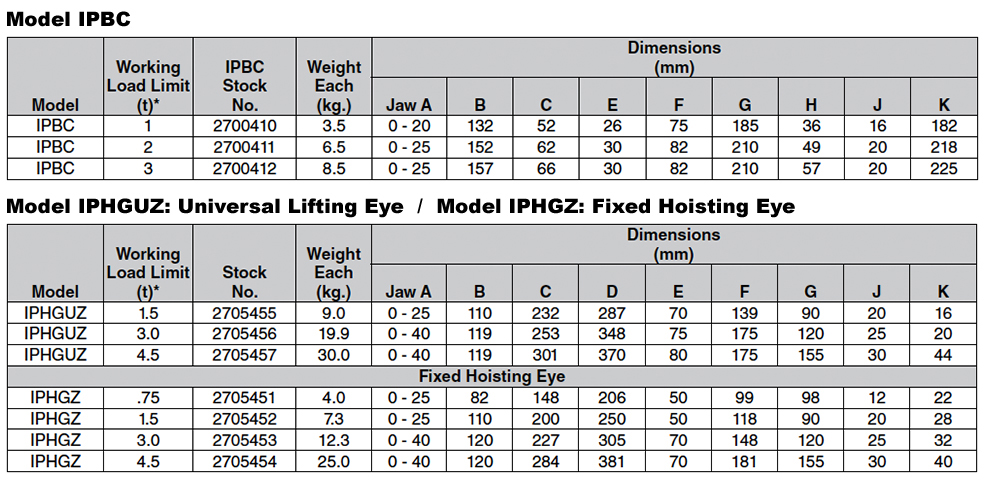

IPBC / IPHGUZ Horizontal Clamps (Crosby) Specs

* Design Factor based on EN 13155 and ASME B30.20.




Call Mazzella for your clamp repair or inspection needs!

All brands and capacities … including, but not limited to Renfroe, The Crosby Group, Campbell, CM, SuperClamp, and Terrier. Contact your local Lifting Specialist to arrange for pick-up of your lifting clamps for inspection and/or repair!

Call Mazzella for your clamp repair or inspection needs!



Brand

Crosby

Crosby is the world leader in rigging, lifting, and material handling hardware. We set the standard for quality, training, and technical expertise in the field.

The Crosby Group was the first to:

  • Produce the forged wire rope clip (1880s)
  • Produce wire rope guards on sheaves that can be opened for easy reeving (1925)
  • Forge load rating (working load limit) directly onto product (1958)
  • Quench and temper fittings for more reliable performance (1973)
  • Forge Product Identification Code (PIC) into each product that allows traceability to its respective date of production and material certification (1977)
  • Rate products as Fatigue Rated (1991)
  • Forge patented QUIC-CHECK™ markings into hooks, shackles, and various other rigging products to assist users in determining proper use (1992)
  • Produce a crane block that can be reeved without removing the wedge socket from wire rope in the United States (1996)
Crosby Logo


All product warnings: Warnings Page
