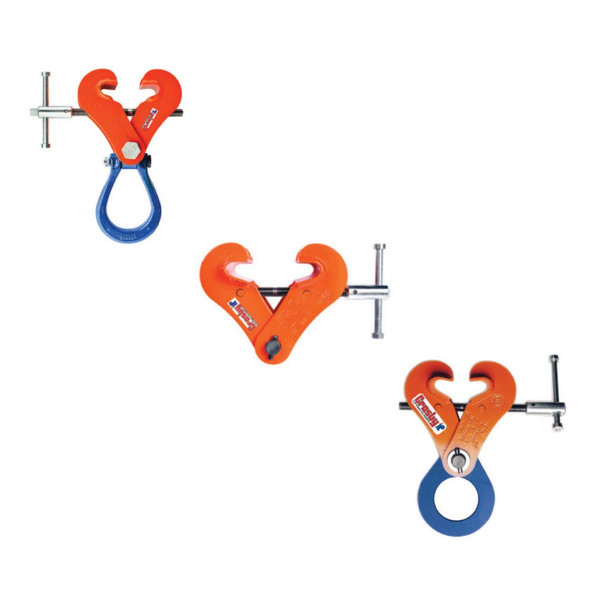

Crosby IPTK / IPTKW / IPTKU Beam Clamps

For the Transfer of Steel Beams and Attachment of Tackle Eye


  • Available in capacities of 2 thru 25 metric tons.
  • Wide variety of jaw openings available: 3″ to 40″.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
  • Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
Category: Tags: , ,
Crosby Logo

Description

  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included on the test certificate with maintenance and warranty logbook.
  • Maintenance replacement parts are available.
  • Manufactured by a ISO 9001 facility.
  • All sizes are RFID EQUIPPED.



IPTK / IPTKW / IPTKU Beam Clamps (Crosby) Diagram

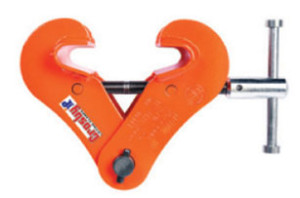

IPTK Series

This IPTK series beam clamp is suitable for use as a temporary tackle eye for a beam.

IPTK Series

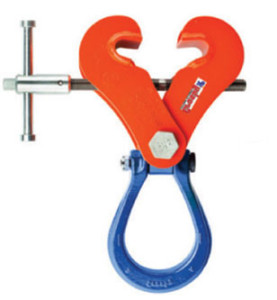

IPTKW Series

This IPTKW series beam clamp is suitable for use as a temporary tackle eye for a beam.

IPTKW Series

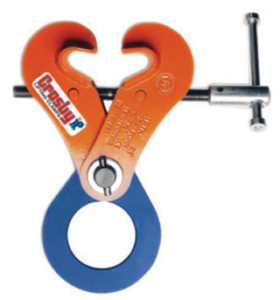

IPTKU Series

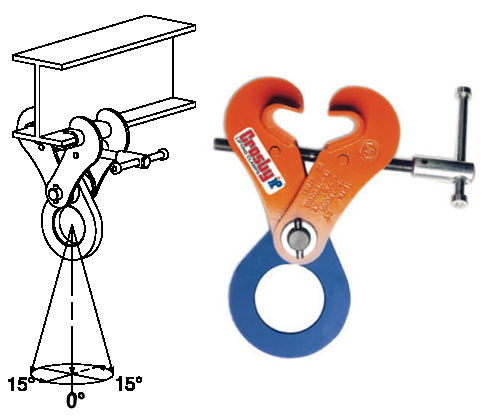

This IPTKU series beam clamp has an improved hinged hoisting eye that increases the loading angles and an optional new “Double Locking Device”.

IPTKU Series

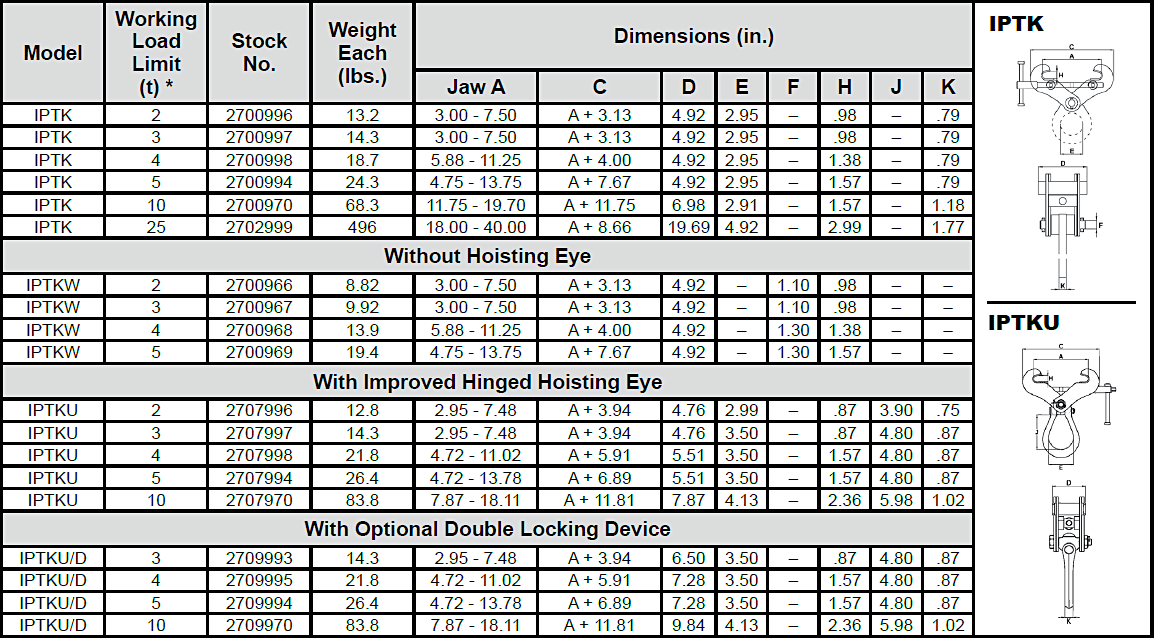

IPTK / IPTKW / IPTKU Beam Clamps (Crosby) Specs

* Design Factor based on EN 13155 and ASME B30.20.
