Crosby L-140 Standard Ratchet Type Load Binders

  • Upgraded for use with Grades 70, 80 and 100 Chain.
  • Utilizes standard Crosby A-323 Alloy Eye Grab Hooks.
  • New design “one piece” forged handle.
  • Continuous take-up feature provides finite adjustment to tie down load.
  • One piece assembly, no bolts or nuts to loosen.

Description

  • Ratchet spring is rust proofed.
  • All load bearing or holding parts forged.
  • Easy operating positive ratchet.
  • Meets or exceeds requirements of US DOT FMCSA Part 393 Subpart

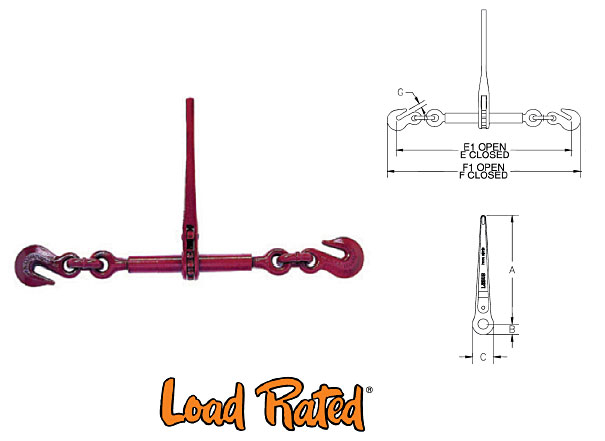

L-140 Standard Ratchet Type Load Binders (Crosby) Diagram

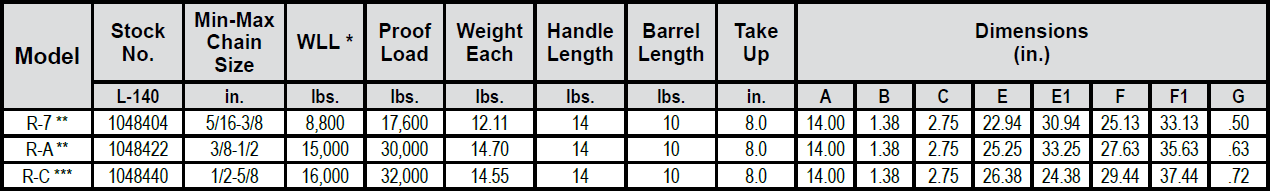

L-140 Standard Ratchet Type Load Binders (Crosby) Specs

* Ultimate Load is 3 times the Working Load Limit.

** Matches the Working Load Limit of Grade 100 chain for both sizes.

*** Matches the Working Load Limit of Grade 100 chain for 1/2″ size.

All product warnings: Warnings Page
View our complete literature library.
