Gunnebo GrabiQ Midgrab Shortener (Removable) MIG

  • Instant mounting and positioning on any part of the chain.
  • Shortening in either chain direction; up-down.
  • Designed to prevent inadvertent chain disengagement.
  • Can be set idle on the chain leg when shortening is not required.
  • LC version offers secure mounting with locking set on any desired part of the chain with one chain direction open for shortening.
  • CC version offers close-open function in both chain directions for safe retention of the chain.

Locking devices for Midgrab MIG;
Note! The MIG must be used with at least one of the locking device.

 L – fixed locking set  C – close/open locking set
 For fixed mounting  Spring operated locking device. Can be placed whether in open or closed position
Gunnebo Industries logo in blue text with stylized horse symbol in dotted circle

Description

GrabiQ Midgrab Shortener (Removable) with Close / Open Device on Either End MIG

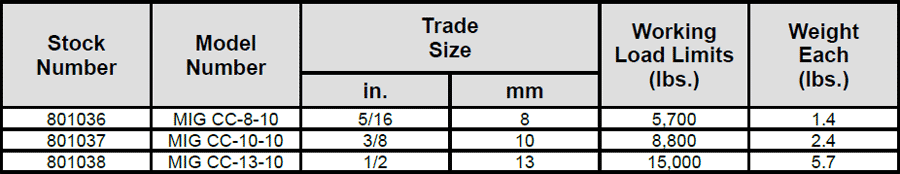

GrabiQ Midgrab Shortener (Removable) MIG Specs

Design Factor 4:1
