New England Ropes Sta-Set Rope

The industry-leading polyester double braid. Sta-Set® is a premium grade, double-braided polyester rope manufactured using only high tenacity polyester for a strong, low stretch, and extremely durable line.

Sta-Set® is ideally suited for controlled lifting and rigging operations where high strength, low elongation, and excellent abrasion resistance are required. Sta-Set® conforms to the physical requirements of MIL-R-24677.

Features & Benefits:

  • Low elongation
  • Torque-free
  • Abrasion & snag resistant
  • Easily spliced
  • Renders well on all winches


  • Lifting lines
  • Stringing lines
  • Underground pulling lines
  • Slings
  • Bull ropes
Category: Tags: , ,
New England Ropes Logo


Sunlight / UV:

Very little degradation from sunlight. Can be used outside over long term if inspected regularly.


Polyester has good resistance to most chemicals, except 95% sulfuric acid and strong alkalines at boil.


Polyester melts at 480°F with progressive strength loss above 300°F.


Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.


Recommended sheave diameter to rope diameter is 8:1.

Working Loads:

No blanket safe working load (SWL) recommendations can be made for any line because SWLs must be calculated based on application, conditions of use, and potential danger to personnel, among other considerations. It is recommended that the end user establish working loads and safety factors based on best practices established by the end user’s industry; by professional judgment and personal experience; and after thorough assessment of all risks. The SWL is a guideline for the use of a rope in good condition for non-critical applications and should be reduced where life, limb, or valuable property is involved, or in cases of exceptional service such as shock loading, sustained loading, severe vibration, etc. The Cordage Institute specifies that the SWL of a rope shall be determined by dividing the Minimum Tensile Strength of the rope by a safety factor. The safety factor ranges from 5 to 12 for non-critical uses and is typically set at 15 for life lines.

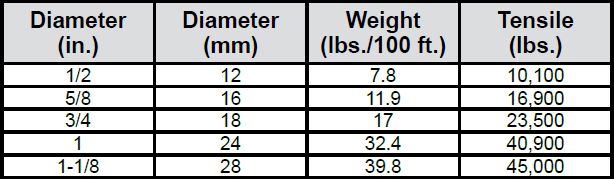

Sta-Set Rope Specs



New England Ropes

Back then it was making its signature product at the time, 3-strand premium nylon. The same product is produced today to the same exacting standards. A half century later, the brand is still committed to quality, innovation and continuous improvement. Consider New England Ropes uncompromising. That is the reputation you get when you develop products for the toughest customers in the cruising, performance racing, dinghy sailing and powerboat markets. In fact, the product range of New England ropes in broader than of any other brand in the global market. Regardless of your sailing or boating style, products by New England Ropes are engineered to offer superior feel, handling and performance. They enable cruisers to feel safe and comfortable in any waters. They allow racing sailors to push their limits and of their sport, and almost fly across the water! They reassure competitive dinghy and aspiring Olympic athletes that they will take to the water with the lightest and best performing to maximize their result.
New England Ropes Logo

Additional information





All product warnings: Warnings Page
