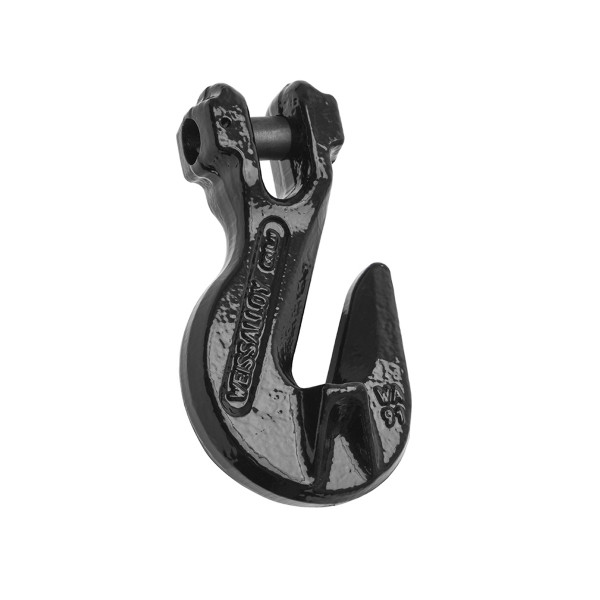

Peerless Peer-Lift Clevis Style Cradle Grab Hook (Grade 80)

Peerless Peer-Lift Clevis Style Cradle Grab Hook (Grade 80)

  • Proof tested at twice the working load limit.
  • Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
  • Meet or exceed ASTM A952 and OSHA 1910 standards.
Categories: , Tags: , , ,
Peerless Logo

Description

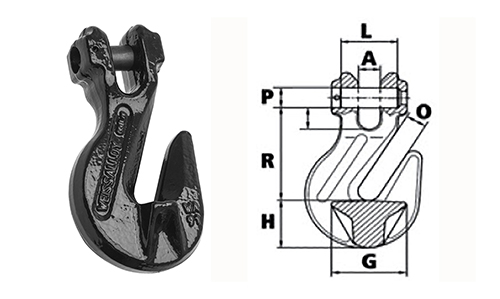

Peerless Peer-Lift Clevis Style Grab Hook (Grade 80) Spec Drawing

Stock # Chain Size Dimensions Lbs. Per Each WLL
(lbs)*
Black Inches mm A G H O R PxL
8428280 9/32-5/16 7-8 0.35 1.18 0.95 0.39 1.97 0.35 x 0.91 0.66 4,500
8428480 3/8 10 0.51 1.73 1.22 0.51 2.83 0.51 x 1.24 1.65 7,100
8428680 1/2 13 0.67 2.09 1.50 0.67 3.46 0.63 x 1.65 3.09 12,000
8428780 5/8 16 0.83 2.52 1.73 0.79 4.02 0.83 x 2.03 5.51 18,100
8428880 3/4 20 0.94 3.35 2.09 0.94 4.61 0.95 x 2.42 9.48 28,300
8428980 7/8 22 1.02 3.82 2.44 1.06 5.47 1.02 x 2.83 14.11 34,200

* WARNING: Working load limit is not to be exceeded.



All product warnings: Warnings Page
