Shaw-Box 800 Series Electric Wire Rope Hoist & Trolley—Single-Reeved

1/2, 1, 2, 3 and 5 Ton Capacities with 20, 25, 30, 40, 45 and 50-Foot Lifts

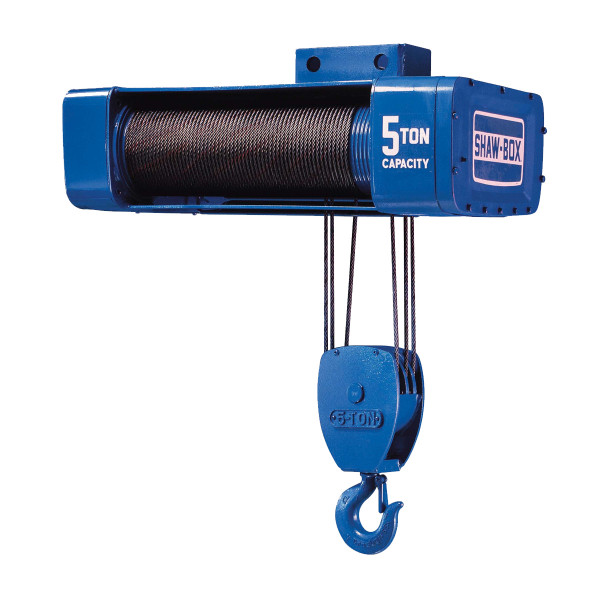

Shaw-Box 800 Series Wire Rope Hoist and Trolley (Single-Reeved). Compact, economical electric wire rope hoists in capacities 1/2 to 5 tons and lifts to 50 feet for standard or special applications.

Shaw Box banner

Description

Features & Benefits:

  • Lug, Push, Geared or Motorized Trolley
  • Easily accessible control enclosure facilitates maintenance
  • D.C. disc motor brake for smooth braking action
  • High-torque, heavy-duty hoist motor for smooth hoisting action
  • Block operated upper limit stop to limit upward hook travel
  • Convenient one-handed push-button control for easy operation of all motions
  • 115 volts at push button for operator safety
  • Push-button cable with built-in strain reliever cable as used on single-speed hoist applications (All others use a separate steel strain reliever cable.)
  • Improved plow steel pre-formed cable for maximum strength and life
  • Shrouded lower block to help prevent pinched fingers
  • Alloy aluminum gear case and cover is lightweight, yet rugged
  • Oil level plug permits easy inspection of oil level
  • Anti-friction bearings throughout for a long-lasting hoist drive train
  • Positive-action, mechanical, load-lowering control brake also acts as a part of the hoist-holding brake system
  • Triple-reduction helical / spur gearing operates in oil bath lube for maximum gearing life
  • Deep-grooved, large diameter rope drum helps prevent rope mounting from an overhead structure, or with any of our overwrap for longer wire rope life
  • Heavy welded steel frame ensures precise fit for long hoisting machinery life

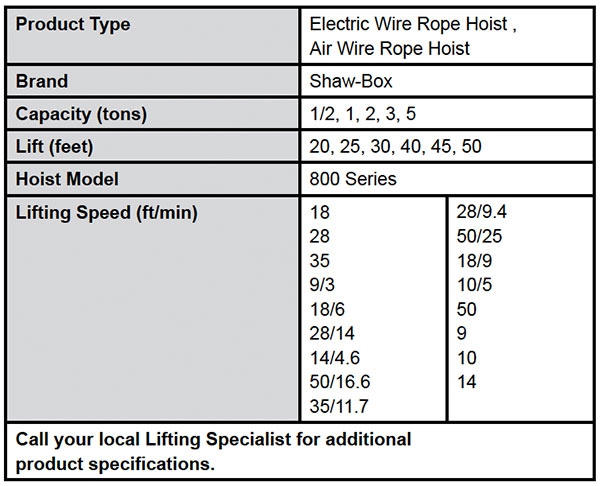

800 Series Wire Rope Hoist & Trolley—Single-Reeved Specs
