Threaded Sleeve

When you want to maximize the length adjustment of your assembly at the point where a wire rope is attached, the threaded sleeve is ideal.

The sleeve is made to meet your requirements. The standard sleeve material is carbon steel, but stainless steels and higher strength steels are also available on request.


We furnish the sleeves without wrench flats unless specified on the order.

You should also measure the length of the assembly, using the maximum dimensions (from the outside end of the sleeve).

To determine the thread length (TL), use the minimum dimensions needed. This allows us to use existing qualified designs. The standard thread used is Right Hand National Course Class 2A, but other threads are available on request.

You may order custom designs with different fitting lengths if you want, but that may reduce the assembly’s overall rated capacity. Call our Customer Service Department to evaluate all the possibilities.

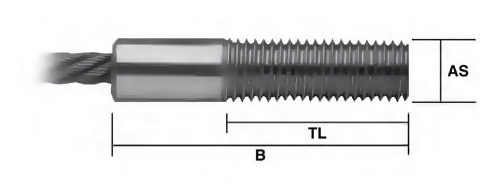

Threaded Sleeve: Specs

Threaded Sleeve chart

* Galvanized Aircraft Cable


All product warnings: Warnings Page
