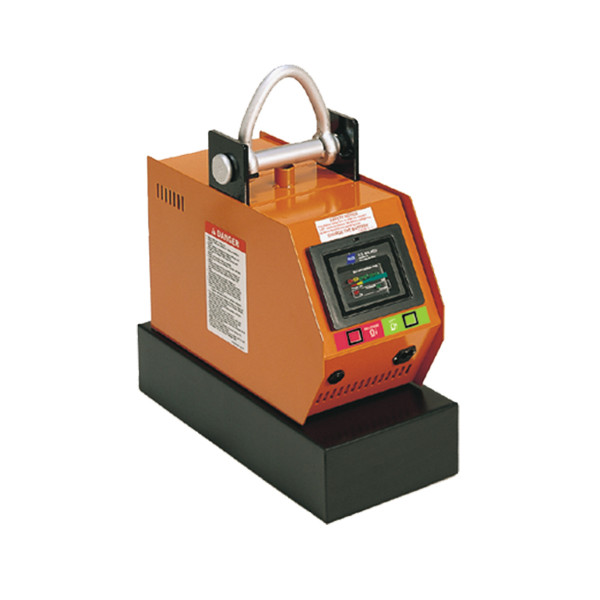

Walker Magnetics BUX BM2-Series Battery Powered Lift Magnets

Local and cordless remote-controlled, battery-powered lift magnets are designed for flat material handling.


These Battery Powered Lifting Magnets are compact, mobile, self-contained units. Operating on their own power sources, they are free of restricting cords and wires, and have the further advantage of being usable in areas where electric power is not available.


  • Pocket for IR Remote Transmitter
  • Removable cover allows inspection of battery.
  • Temperature compensated: built-in automatic cut-off charger prevents over-charging of battery.
  • For safety, magnet can not be turned “ON” if battery charge is too low.
  • Interlock prevents magnet de-energization when suspended in air.
  • Audible Warning Alarm and flashing light indicate low battery
  • Lighted display indicates battery charge level.
  • 110V AC cord and plug for built-in battery charger
  • Uses “Deep Discharge” type low maintenance Gel Cell Battery.
  • Meets all the requirements of ANSI / ASME B30.20 (safety standard).
  • Supplied with manual, pull test certificate, video and safety poster.
walker magnetics

Description

The BUX BM²-13, BUX BM²-25 and BUX BM²-36 are all single units.

The BUX BM²-50 is two magnets on an adjustable spreader beam operated from a single battery pack.

These versatile Walker magnets have widespread application for handling of plates, die blocks, machined components, smooth castings and forgings. These battery-powered magnets are extremely useful throughout the plant, around the yard, receiving and shipping areas, storeroom, cut-off saws, burning and welding tables, and machine tools, such as grinders, millers, shapers, drill presses, etc. Batteries not included.

The maximum rated lift is based upon lifting clean, smooth, flat, low-carbon steel plate, 2″ or thicker with the full area of the magnet’s lifting surface in contact with the load. Derating is required for plates with rust or scale, plates thinner than 2″, and alloy steels. More detailed ratings are contained in the Operator’s Manual and Safety Instructions.



BUX BM2-Series Battery Powered Lift Magnets chart 2

BUX BM2-Series Battery Powered Lift Magnets chart 1



All product warnings: Warnings Page
