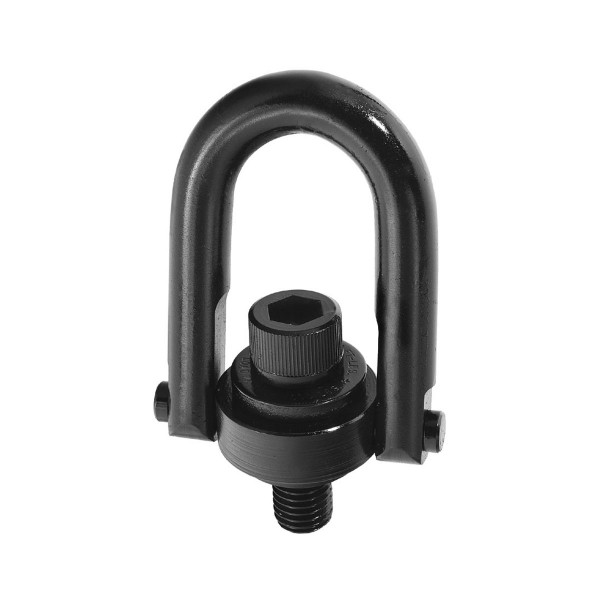

ADB Safety Engineered Hoist Rings

Material:
Alloy steel with minimum tensile strength of 180,000 PSI.

Design Factor:
5:1, Magnetic Particle Inspected Per ASTM 1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis, Standard tolerance +/- .030 inch unless otherwise specified.

Finish:
Black Oxide Finish for corrosion resistance, also available in Cadmium, Titanium-Cadmium, Nickel and other plating.

Range of Movement:
Swivel 360°, Pivot 180° under Load

Patent Numbers:
5,848,815

ADB Logo

Description

Available in sizes from:

  • Standard Sizes:
    – 3/8″ U-Bar (thread size 1/4″-20) to 5″ U-Bar (thread size 6″-4)
    – Rated load from 550 to 250,000 pounds
    – Long Bar Models are available
  • Metric Sizes:
    – Thread sizes from M8 x 1.25 to M90 x 6.00
    – Rated load from 400 kg to 51,000 kg
    – Long Bar Models are available
