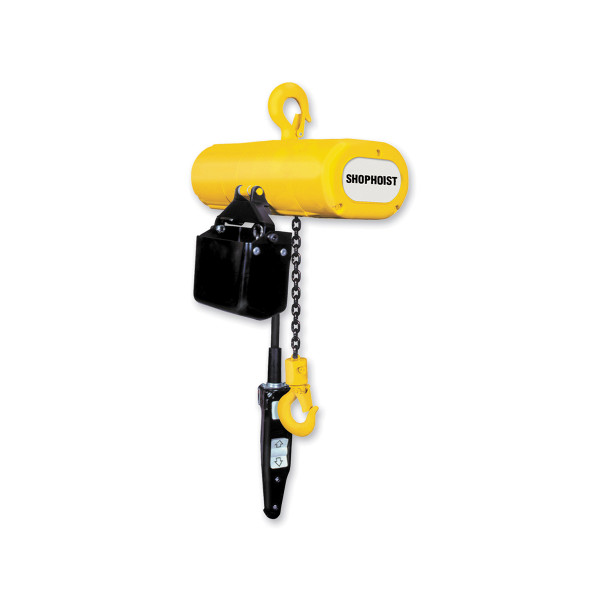

Budgit Shophoist Electric Chain Hoist

250, 300, 500, 600 and 1,000 Lb. Capacities with 10-Foot Standard Lift.

Budgit Shophoist Electric Chain Hoist features rugged construction and high H4 duty cycle. Capable of lifting up to 1,000 pounds and 300 motor starts per hour.

Budgit Logo

Description

Features & Benefits:

  • H4 duty cycle (300 motor starts / hour)
  • Easy installation and maintenance
  • Standard protector overload device
  • 10 pocket oblique lay lift wheel provides longer chain wear
  • Epoxy powder coat finish
  • 6-1/2 ft. power cord with molded 3 prong plug on 115 volt units
  • NEMA 4 industrial rated control station
  • Optional impact-resistant chain container available
  • Gear train lifetime lubricated with non-oxidizing grease
  • CM Hoist Alloy Load Chain (zinc plated optional)
  • Thermally protected hoist duty motor
  • Dual braking system – D.C. plus regenerative
  • Rugged cast aluminum alloy hoist frame
  • 5:1 design factor
  • Small, compact design for commercial and industrial applications
  • Rigid hook suspension prevents tangling of power cord
  • Hardened forged steel latch style lower hook rotates 360°
  • Totally enclosed non-ventilated hoist frame protects motor from environmental contamination
  • True vertical lift
  • Precision bearings used throughout hoist
  • Lifetime warranty
  • Made in U.S.A.

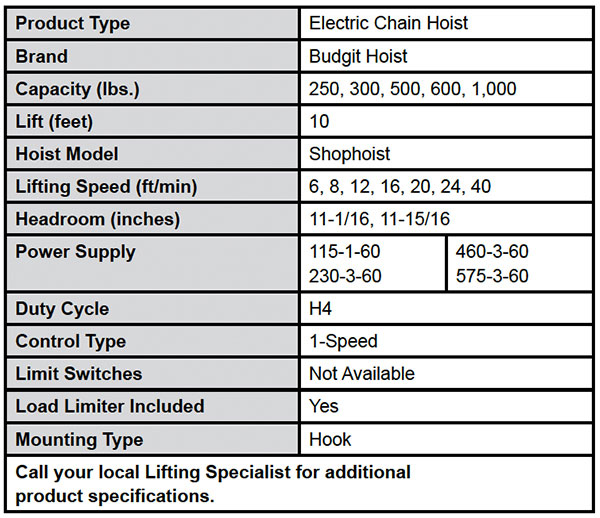

Shophoist Electric Chain Hoist Specs

NEED HOIST REPAIR OR PARTS?

We do repairs in-house and stock a full line of parts.

Brand

Budgit Hoists

Designed with versatility in mind, Budgit Hoists provide power and durability for a diverse range of special, heavy-duty applications. Electric chain hoists are built to withstand the rigors of extreme environments, while hand chain hoists and lever tools are used extensively in repair and construction activities. Food grade hoists, spark-resistant models, and explosion-proof units provide secure lifts in sensitive areas. Low headroom hoist/trolley combinations are used extensively in areas where space is at a premium, and a complete line of bridge kits and related components provide effortless movement above the shop floor.
