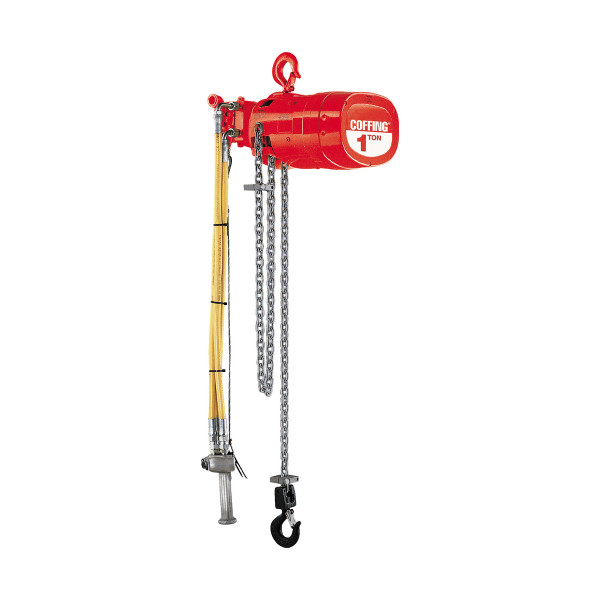

Coffing CAH Large Frame Air Hoist

1, 2 and 3 Ton Capacities with 10-Foot Standard Lift—Longer lifts are available.

Coffing CAH Large Frame Models are large frame air chain hoists featuring continuous-duty service for precise, infinitely variable speed and accurate load spotting.

Coffing Hoists Banner

Description

Features & Benefits:

  • Pendant throttle is full-flow design. 6-foot pendant hose length for 10-foot lift (4-foot less than lift – standard).
  • Precision throttle valves meter air for smooth starts.
  • Swivel top and bottom hooks with safety latches standard. Rigid top hook, lug, plain, geared and air motor trolleys available.
  • Precise and infinitely variable speed control for accurate load spotting. 90 PSI air operating pressure.
  • Aluminum housing lightweight, compact and strong.
  • 8-vane rotary air motor produces high, uniform torque and quick response. Internal muffler for quiet operation.
  • Combination of precision cut, heat-treated helical and spur gears for efficient operation.
  • Mechanical, positive-acting, Weston-type load brake holds the load and provides exacting load spotting and control.
  • Overload clutch protects hoist, operator and supporting structures from damaging overloads. Clutch acts as upper and lower limits.
  • Spark resistant models—Rated capacities 1/2, 1 and 2 Tons.
  • Options—Corrosion resistant models and chain containers also available.
  • Air Supply—Inlet size: 3/4″ NPTF; Supply hose: 3/4″ I.D. min.
  • Lifetime warranty
  • Made in U.S.A.

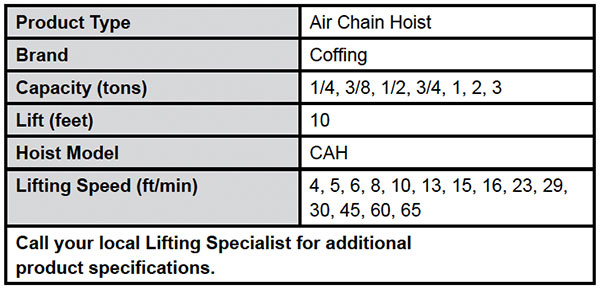

Model CAH Large Frame Air Hoists—Various Suspensions Specs
