Cortland Extender™ Adjustable Slings

Cortland Extender™ Adjustable Slings

Adjustable length high performance lifting slings.

When load handling heavy equipment becomes a challenge—especially when lifting loads with differential sling lengths—adjustable high performance synthetic rope slings are ideal tools. Cortland offers Plasma® rope slings in an adjustable form: introducing Extender™ slings.

Extender slings have one permanent eye, and one eye that is adjustable, which means it can be tightly sized to fit an application, then lengthened or shortened to fit a different application. A single Extender sling can solve lifting requirements in a wide variety of situations. This changes a high performance rope sling from a specific-use tool, to one that is adaptable for multiple uses; minimizing the number of lifting slings needed in-stock.

Categories: , Tags: , , , , ,
Cortland International Logo

Description

The benefits of using high performance synthetic rope slings, instead of traditional wire rope, have not only been well-documented but are also put into practice every day by lifting companies worldwide.

Cortland’s patented Plasma HMPE (Ultra High Modulus Polyethylene) synthetic fiber rope slings are lighter than wire rope, offer greater flexibility both in design and use, and are less labor-intensive to move. Plasma rope slings have been successfully replacing steel wire rope in lifting applications for more than 25 years.

Cortland Extender Slings Detail

Features and Benefits:

  • HMPE high performance lifting sling

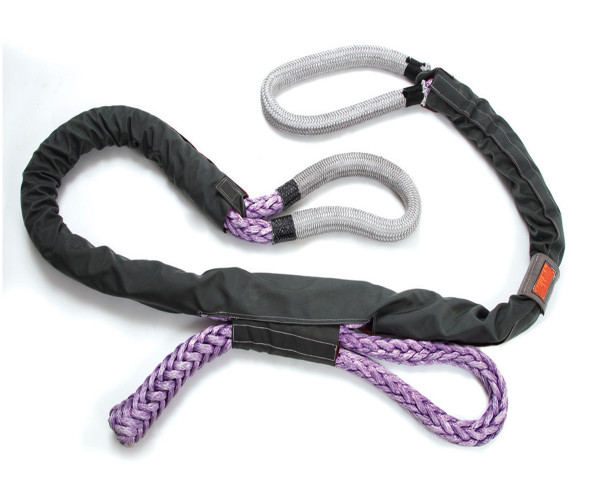

  • One permanent eye, one adjustable eye
  • Length adjustable, to use in a variety of applications

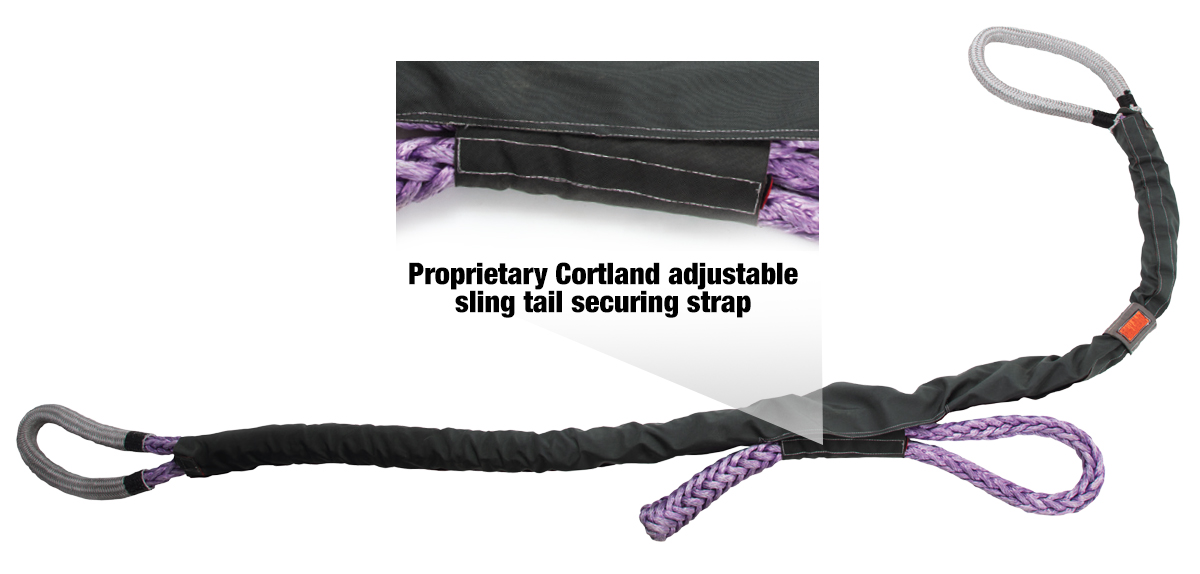

  • Opposing force tightens the adjustable splice, preventing any lengthening of the sling
  • Lightweight flexibility for safe and fast rigging
  • Minimum length dependent on rope diameter size; no max length limitations
  • Easy to inspect

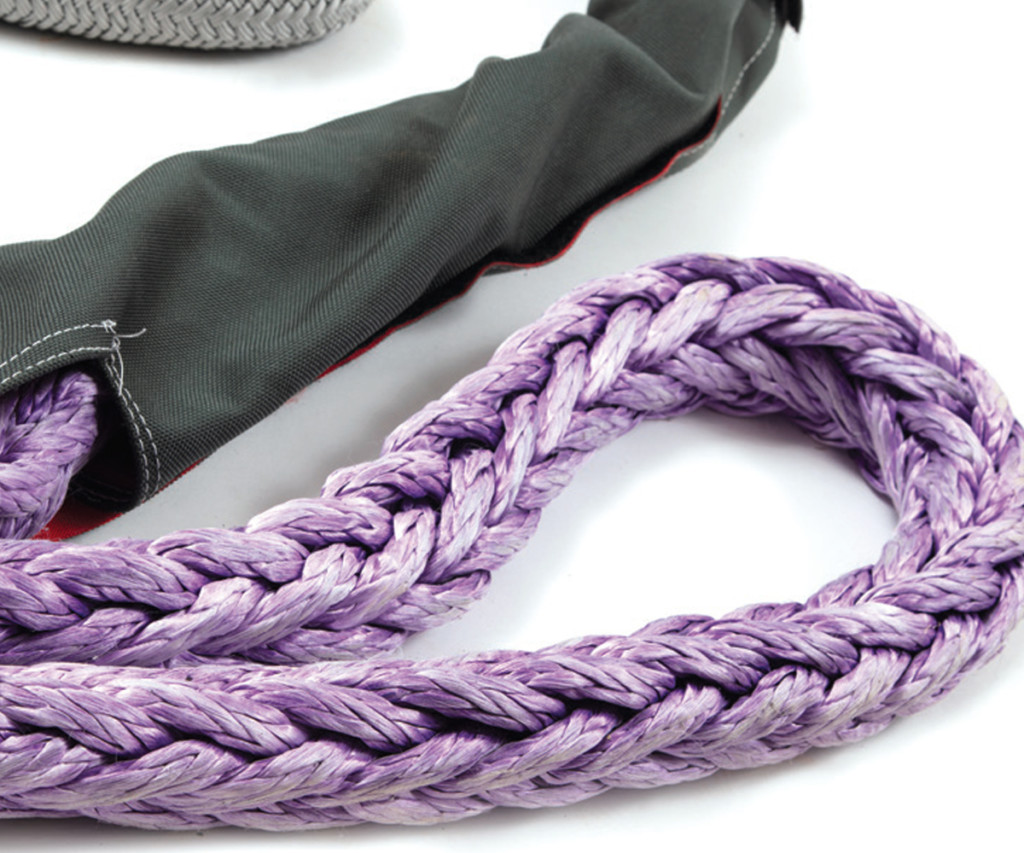

  • Durable cut-resistant eye terminations

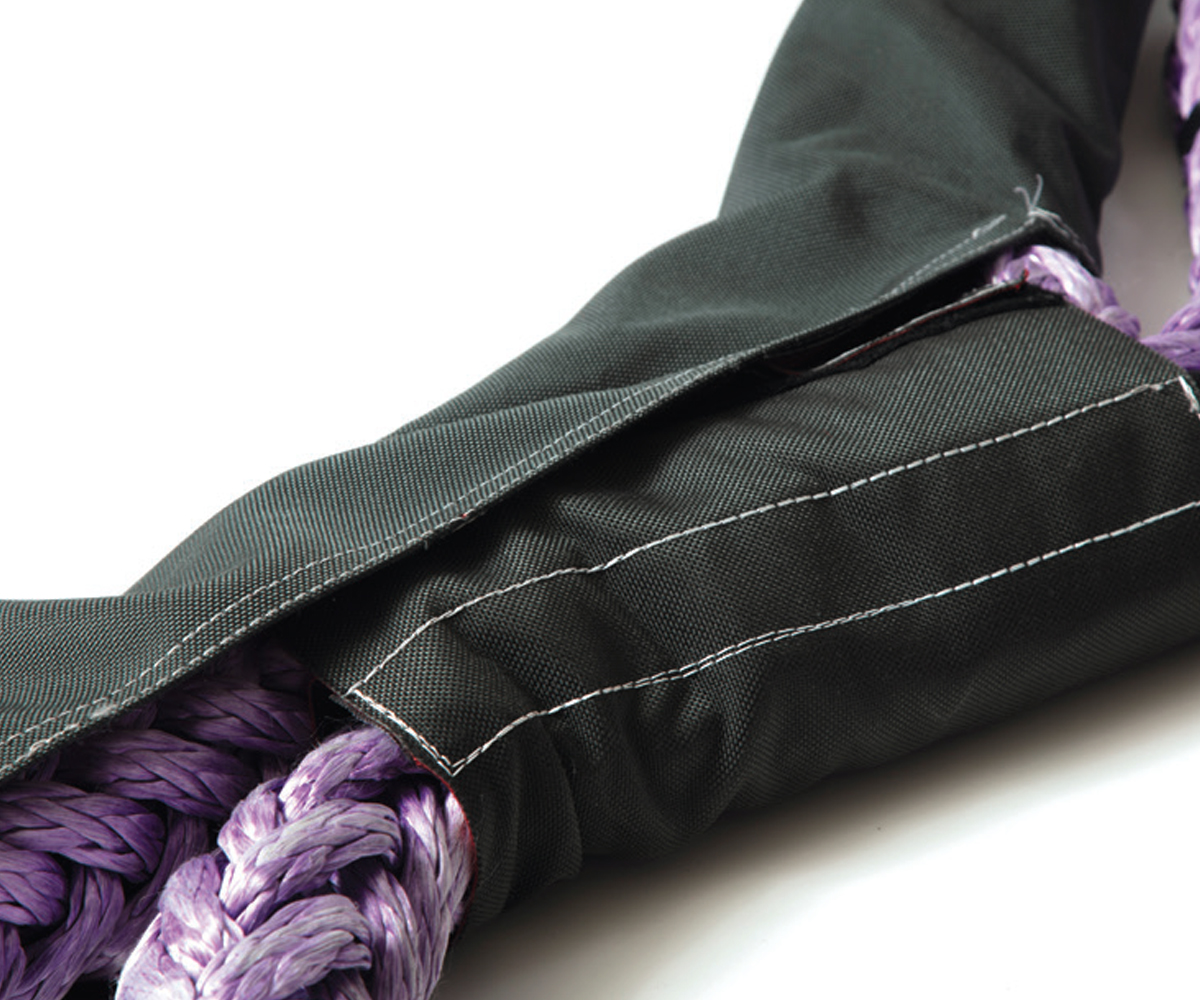

  • Many chafe guard options, offering increased protection yet allowing for inspection



Traditional lifting slings made from steel wire rope are heavy, inflexible, and difficult to rig.

Unlike wire, Plasma rope slings will not rust or corrode and have much better bend and tension-tension fatigue resistance. Single leg or multi-leg bridles using Extender slings are designed using high modulus synthetic fibers in a torque-free braided construction and offer the same strength and elongation characteristics as wire with only 1/7th the weight.

Extender slings are currently available with standard vertical lifting capacities from 10 to 250 tons. All single leg or multi-leg Extender slings are proof-loaded to 2x WLL (5:1), have less than 1% elongation under WLL, and are properly tagged.



Nominal diameter
(inches)		 Size
(circ. in.)		 Sling Rated Capacities
@ 5:1 WLL (lbs)		 Minimum Eye Size
(inches)		 Minimum OAL
(feet)
Vertical
(lbs)		 Basket
(lbs)

Plasma 12 Strand
1/4 3/4 1,280 2,560 6 4
5/16 15/16 1,872 3,744 6 4
3/8 1-1/8 2,800 5,600 6 5
7/16 1-1/4 3,360 6,720 6 6
1/2 1-1/2 5,008 10,016 6 6
9/16 1-3/4 6,064 12,128 6 7
5/8 2 8,224 16,448 6 7
3/4 2-1/4 10,960 21,920 6 8
13/16 2-1/2 11,840 23,680 6 9
7/8 2-3/4 14,816 29,632 6 10
1 3 17,600 35,200 8 11
1-1/16 3-1/4 20,672 41,334 8 12
1-1/8 3-1/2 23,520 47,040 8 12
1-1/4 3-3/4 26,400 52,800 8 13
1-5/16 4 31,360 62,720 8 14
1-1/2 4-1/2 35,360 70,720 8 16

Plasma 12×12
1-5/8 5 46,560 93,120 12 18
1-3/4 5-1/2 50,240 100,480 12 20
2 6 56,800 113,600 12 21
2-1/8 6-1/2 68,480 136,960 12 23
2-1/4 7 76,960 153,920 12 26
2-1/2 7-1/2 84,800 169,600 12 27
2-5/8 8 95,360 190,720 12 27
2-3/4 8-1/2 105,600 211,200 12 28
3 9 124,800 249,600 12 30
3-1/8 9-1/2 136,000 272,000 18 32
3-1/4 10 150,400 300,800 18 34
3-1/2 10-1/2 177,280 354,560 18 36
3-5/8 11 200,000 400,000 18 37
3-3/4 11-1/2 210,720 421,440 18 38
4 12 243,200 486,400 18 40
