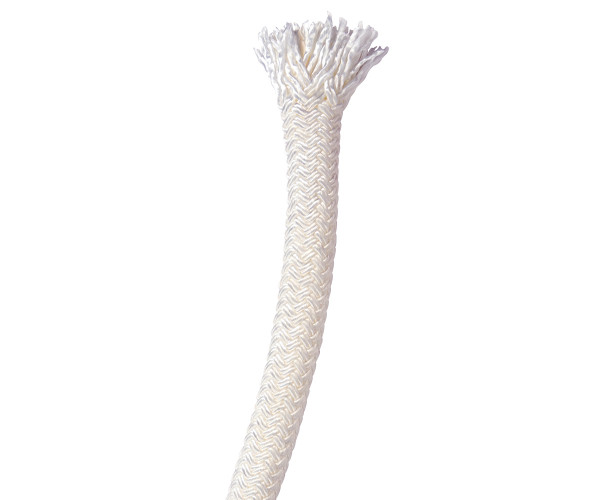

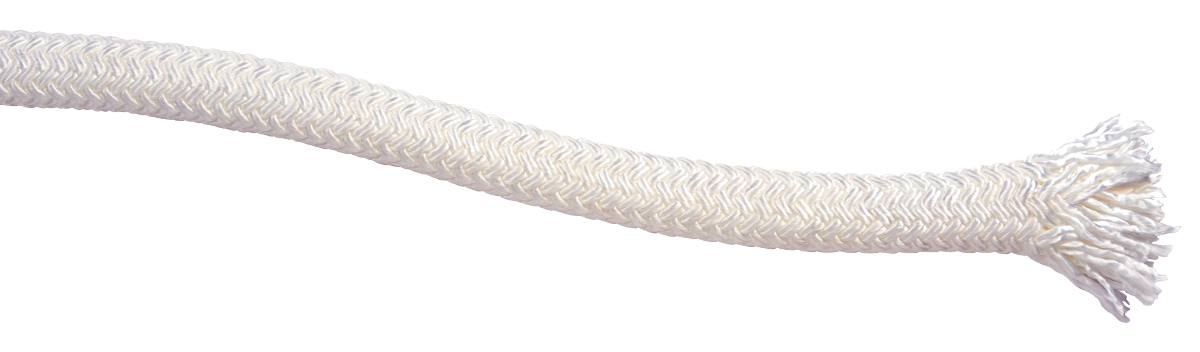

Cortland Double Braid – Nylon

Nylon Double Braid is the preferred choice for applications requiring high strength with excellent shock absorbing properties.

Double Braid has good resistance to abrasion, sunlight and chemicals. Due to its high elongation, nylon is almost always used in applications involving shock loading such as anchor lines and mooring lines.

Nylon Double Braid is delivered standard with an overlay marine finish.

Learn more about Nylon Double Braid Rope

Cortland Logo

Description

Features and Benefits:

  • High stretch
  • High strength
  • Excellent shock absorption
  • Soft hand
  • Torque free
  • Meets MIL-DTL-24050E

Applications:

  • Anchor lines
  • Mooring lines
  • Shock absorbers
  • Pendants
  • Towlines
  • Towed array stretchers

Certifications:

  • ABS
  • DNV-GL

ABS / DNV GL Logos

Cortland Double Braid Nylon Rope

Nominal Diameter
(inches)
Size
(circ in.)
Approximate Weight
(lbs/100ft)
Minimum Tensile Strength
Spliced Rope
(lbs)
Minimum Tensile Strength
ISO Unspliced Rope
(lbs)
1/4 3/4 1.7 1,900 2,100
5/16 1 2.6 2,900 3,200
3/8 1-1/8 3.7 4,200 4,700
7/16 1-1/4 5.1 5,700 6,300
1/2 1-1/2 6.6 7,400 8,200
9/16 1-3/4 9 10,200 11,300

ABS and DNV Type Approved Sizes

5/8 2 11.6 14,800 16,400
3/4 2-1/4 14.7 19,000 21,100
7/8 2-3/4 21.8 28,300 31,400
1 3 26 33,500 37,200
1-1/16 3-1/4 31 39,000 43,300
1-1/8 3-1/2 35.4 44,900 49,900
1-1/4 3-3/4 40.7 52,300 58,100
1-5/16 4 46.3 58,800 65,300
1-1/2 4-1/2 58.4 74,000 82,200
1-5/8 5 72.3 92,400 102,700
1-3/4 5-1/2 87.7 110,900 123,200
2 6 103.9 131,500 146,100
2-1/8 6-1/2 122 152,800 169,800
2-1/4 7 141.2 181,000 201,100
2-1/2 7-1/2 162.6 201,000 223,300
2-5/8 8 185.1 222,000 246,700
2-3/4 8-1/2 201.2 248,000 275,600
3 9 234.3 277,000 307,800
3-1/4 10 288.9 341,000 378,900
3-5/8 11 349.9 409,000 454,400
4 12 416.2 475,000 527,800
4-1/4 13 481.5 549,000 610,000

Tensile Strengths are determined in accordance with Cordage Institute 1500, Test Methods for Fiber Rope. Weights are calculated at linear density under standard preload (200d2) plus 4%. See reverse side for application and safety information.

Please note that the Minimum Tensile Strengths of Black Nylon Double Braid products are normally 10% below published specifications. Type Approval of Nylon Double Braid does not apply to Black Nylon Double Braid.




Technical InformationCortland Double Braid Nylon Rope Technical Chart

Specific gravity: 1.14*
Melting point: 414°F (212°C)
Critical temperature: 300°F (149°C)
Coefficient of friction: 0.12–0.15*
Elongation at break: 30–35%
Fiber water absorption: 3–4%
UV resistance: good
Wet abrasion: excellent
Dry abrasion: excellent

* Value based on data supplied by the fiber manufacturer for new, dry fiber
