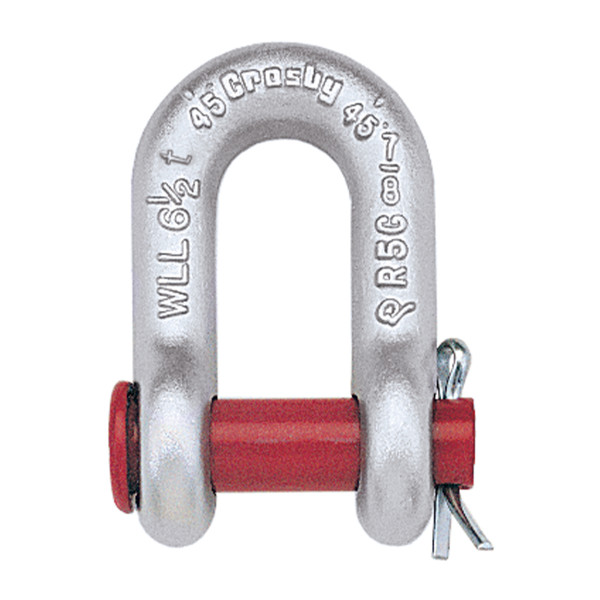

G-215 / S-215 Round Pin Chain Shackles

Crosby G-215 / S-215 Round Pin Chain Shackles

  • Capacities 1/2 through 35 metric tons.
  • Forged – Quenched and Tempered, with alloy pins.
  • Working Load Limit permanently shown on every shackle.
  • Hot Dip galvanized or Self Colored.
  • Fatigue rated.
  • Shackles 25t and larger are RFID EQUIPPED.
Category: Tags: , , ,

Description

G-215 Round pin chain shackles meet the performance requirements of Federal Specification RR-C-271F Type IVB, Grade A, Class 1, except for those provisions required of the contractor.

  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification. Charges for proof testing and certification available when requested at the time of order.
  • Shackles are Quenched and Tempered and can meet DNV impact requirements of 42 joules (31 ft-Ibs.) at -20°C (-4°F).
  • Look for the Red Pin®…the mark of genuine Crosby quality.

G-215 / S-215 Round Pin Chain Shackles

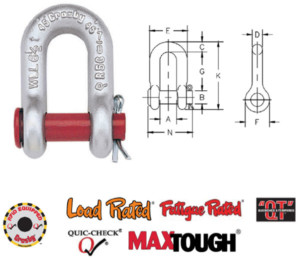

G-215 / S-215 Round Pin Chain Shackles Specs

* Note: Maximum Proof Load is 2.0 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit.



All product warnings: Warnings Page
