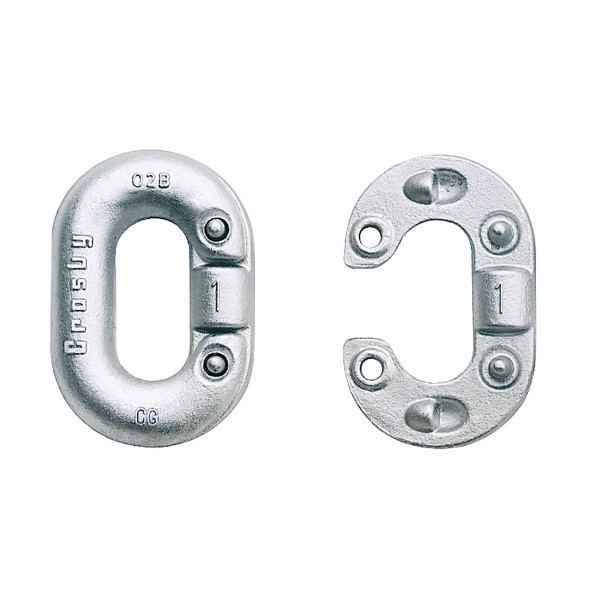

Crosby G-335 / S-335 “Missing Link”® Replacement Links

Meets or exceeds the performance requirements of Federal Specifications RRC-27lD, Type II, except for those provisions required of the contractor.

  • Forged Steel — Quenched and Tempered.
  • Integral rivets join the two halves.
  • After making connections, rivets must be peened.
Category: Tags: , ,

Description

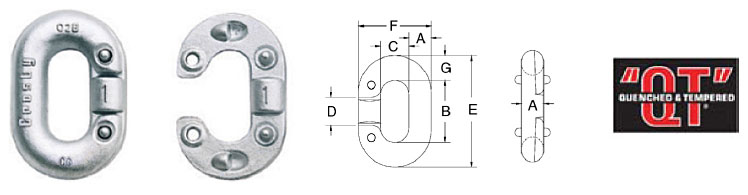

G-335 / S-335 "Missing Link"® Replacement Links Diagram

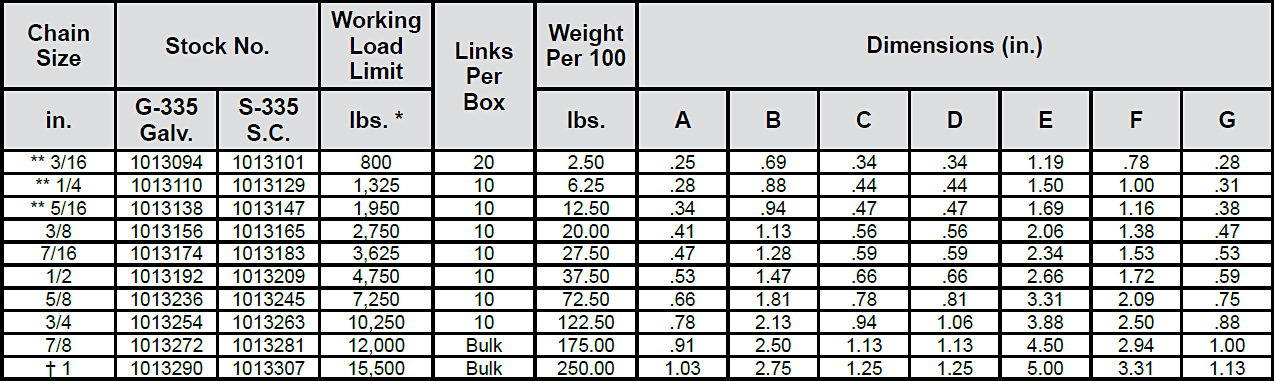

G-335 / S-335 "Missing Link"® Replacement Links Specs

* Ultimate Load is 4 times the Working Load Limit.

** Rivets Only – No interlocking lugs.

† Has reinforced rivet holes. All sizes have countersunk rivet holes.

WARNING: Not Suitable for use with Grade 80 or Grade 100 chain and chain slings used in overhead lifting.



Additional information

Size: (in.)

1/4, 5/16, 3/8, 1/2

All product warnings: Warnings Page
