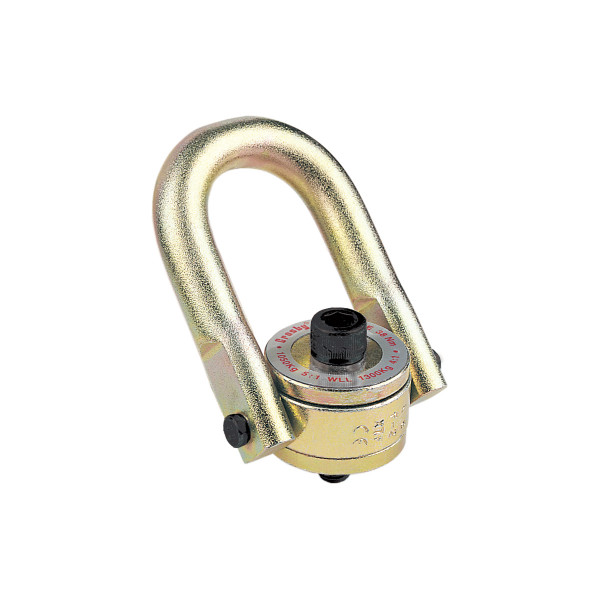

Crosby Swivel Hoist Rings – Metric

  • Top washer has the following features: – The Working Load Limit and Recommended Torque value are permanently stamped into each washer. – Washer is color coded for easy identification: Silver – Metric thread.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • Bolt specification is a Grade 12.9 Alloy socket head cap screw to Din 912. All threads listed are metric (ASME/ANSI B18.3.1m).
  • Designed to be used with ferrous work piece only.
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing below. Illustration shows meaning of each dimension given.
  • Frame 2 and larger RFID EQUIPPED.
  • Also available in Stainless Steel.

Description

Metric Swivel Hoist Rings

Metric Swivel Hoist Rings

HR-125 M Metric Threads

Metric Swivel Hoist Rings Specs

* The tightening torque values shown are based upon threads being clean, dry and free of lubrication.

† Individually proof loaded to 2-1/2 times the Working Load Limit based on the 4:1 design factor.

‡ Bolt specification is a Grade 12.9 Alloy socket head cap screw to Din 912. All threads are metric (ASME / ANSI B18.3.1m).



All product warnings: Warnings Page
