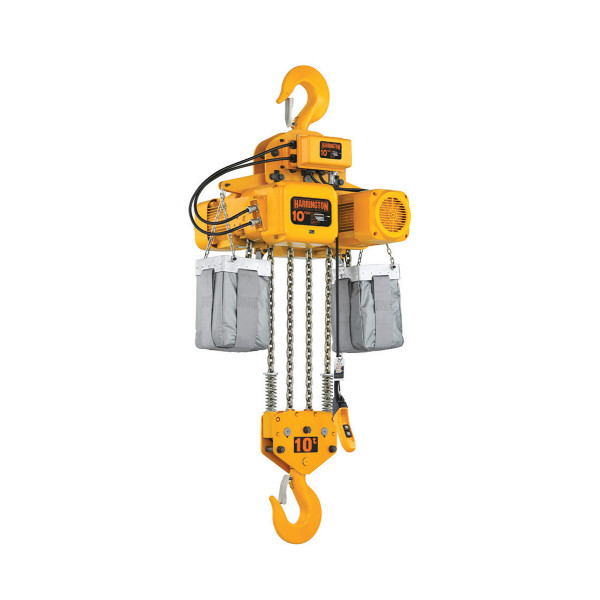

Harrington NER/ER 3-Phase Large Capacity Electric Chain Hoist

8, 10, 15 and 20 Ton Capacities with 10-Foot Standard Lift.

Large capacity lifting is now available in both the NER and ER models. These three-phase electric chain hoists provide the duty cycle, durability and ease of operation needed to support most heavy lifting applications.

Harrington Hoist Logo

Description

Features & Benefits:

  • UL® Listed—Certified and listed to UL 1340 “Standard for Hoists.”
  • Green Initiative—Built smarter without the use of harmful materials. Environmentally friendly. RoHS compliant.
  • Heavy-Duty Hook Latches—Standard
  • Limit Switches—Low-profile upper and lower limit switches are standard.
  • Extended Chain Life—Decreased chain wear as a result of a revolutionary heat treatment process, improved material and chain size.
  • Contactors—Mechanically interlocked, heavy-duty contractors on single-speed models.
  • High Air Flow—Cooler motor and brake attributed to an engineered motor fin, fan blade and fan cover design.
  • Unique Load Sheave—Increased number of pockets reduce chain vibration and increase chain life. 5 pockets standard.
  • Friction Clutch and Load Brake—Friction clutch is standard on NER/ER models and friction clutch with mechanical load brake standard on ER models. Carbon friction material provides consistent performance over a wide temperature range.
  • Standard Count Hour Meter—Records and displays the number of lowering starts and hoist on time, which is valuable for preventive maintenance. Integral to VFD on dual speed models.
  • High Strength, Corrosion and Wear Resistant Load Chain—Grade 80, super strength, nickel-plated load chain, certified to DIN standards, uses unique technology to greatly increase resistance to fatigue and wear.
  • Dual-Speed VFD—Under-the-cover VFD standard for dual speed hoists. Speed ratio is 3:1 with adjustability up to 12:1.
  • “The Guardian”: Smart Brake Technology—A current driven electromagnetic brake does not release unless the motor is energized. 10-year hoist brake warranty.
  • Pendant Controls—Ergonomic design for operator comfort. Red button emergency stop is standard on all 2-button dual-speed pendants.

(N)ER 3-Phase Large Capacity Electric Chain Hoists Specs
