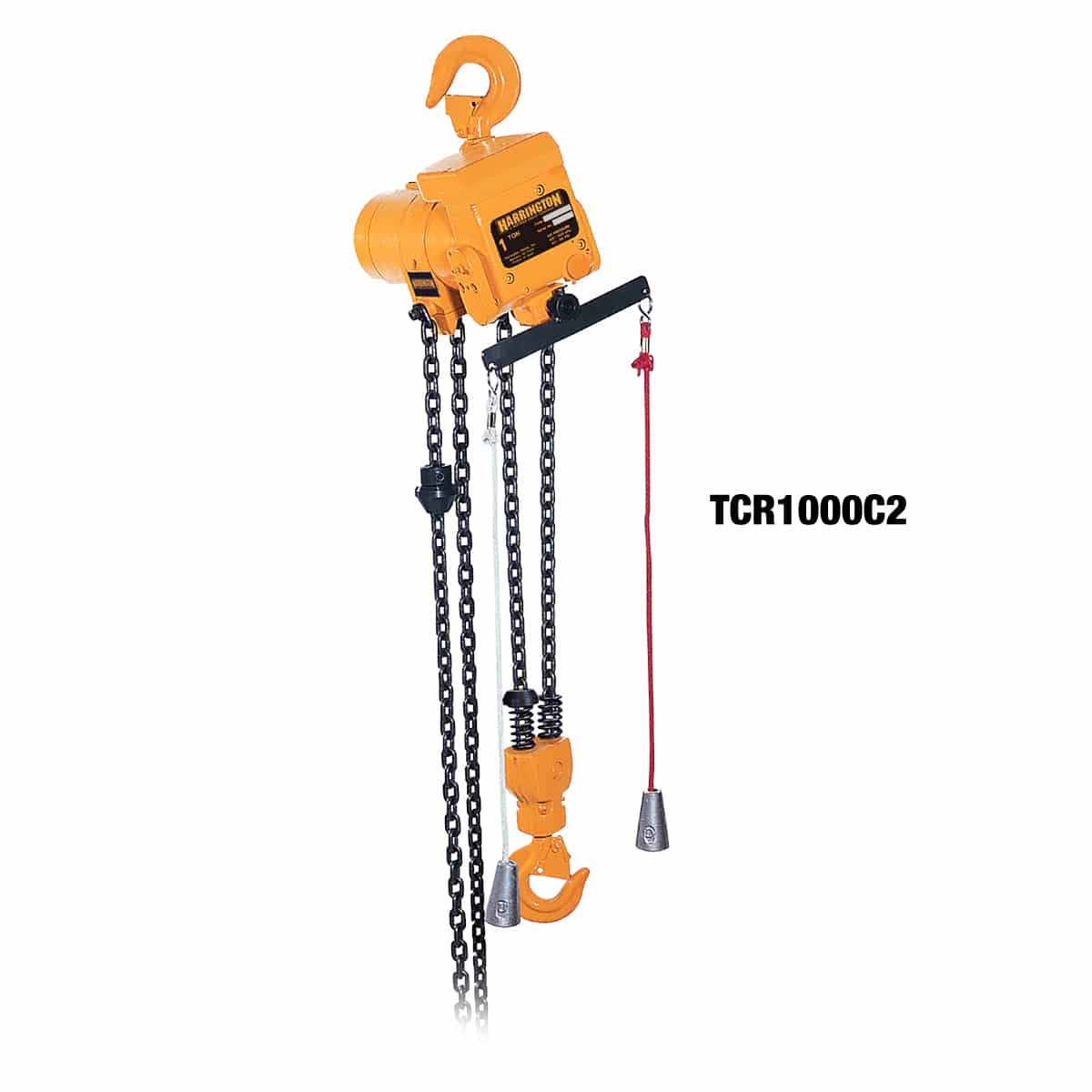

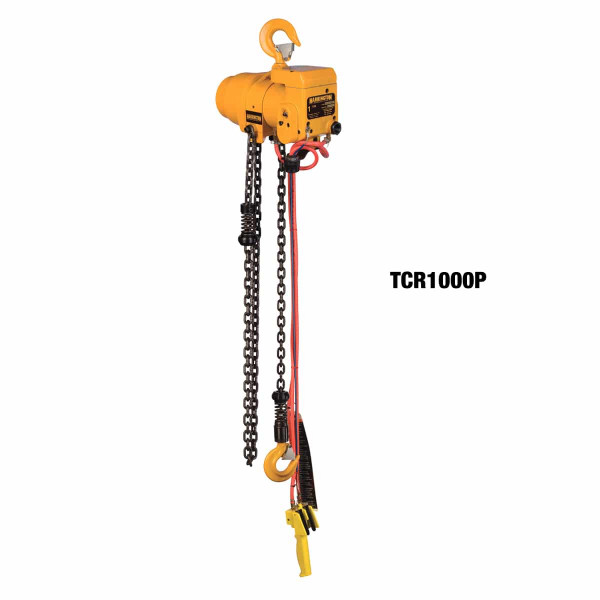

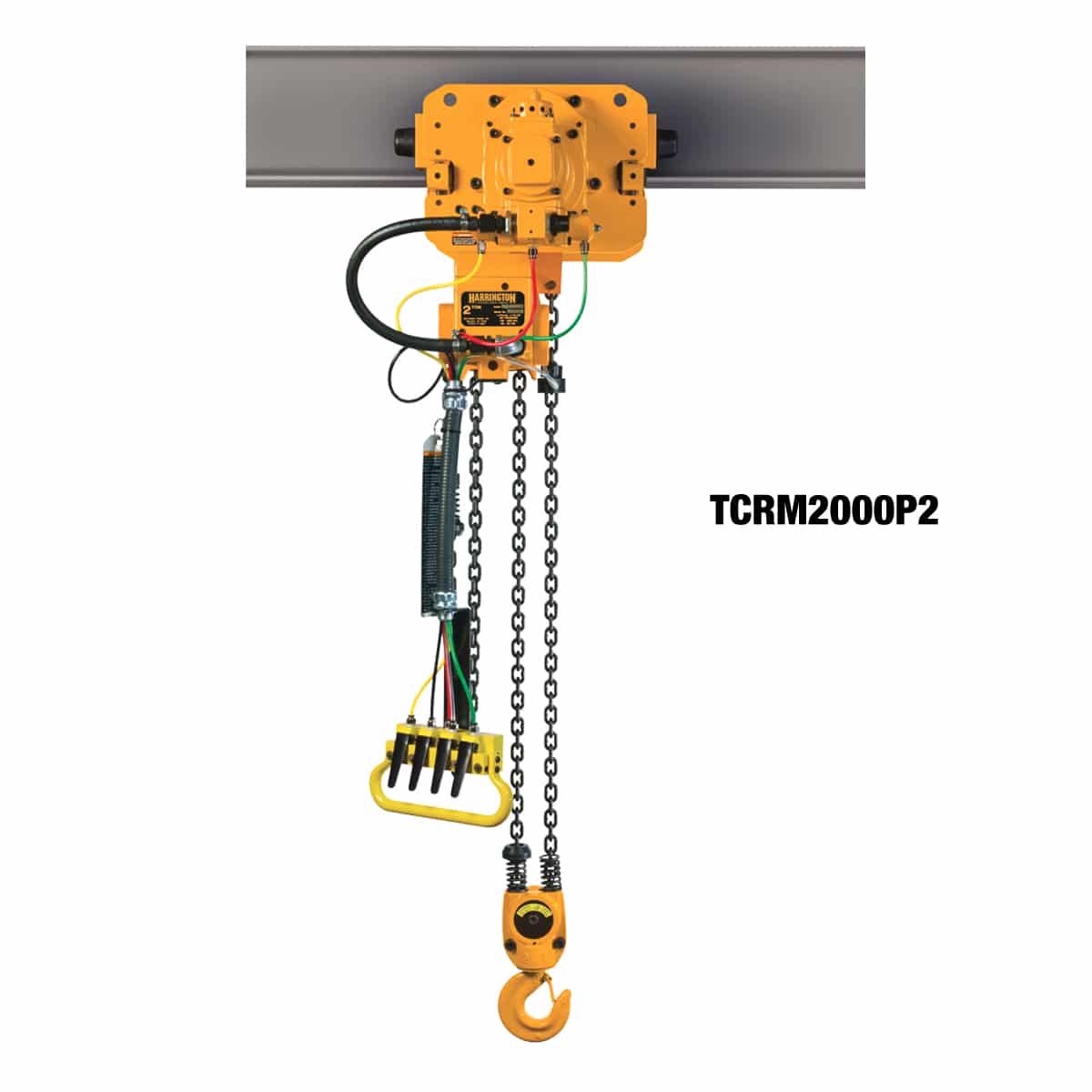

Harrington TCR Air Powered Hoist

1/4, 1/2, 1, and 2 Ton Capacities with 10-Foot Standard Lift

Harrington’s TCR Air Powered Hoists with Pendant and Cord Controls and Hook Suspension offer the benefit of lifting heavier loads while maintaining low headroom and a continuous duty cycle. These hoists are best suited for use in foundries, assembly lines, construction sites and many other demanding applications.  Available in ¼ ton – 2 ton capacities.

Harrington Hoist Logo

Description

Features & Benefits:

  • Unlimited duty cycle for continuous use.
  • Spring-loaded multi-vane motor design.  Permits very fine feathering control.
  • High strength cast iron housing.  Proven weather resistant and durable for harsh environments.
  • Airtight hoist.  Results in efficient use of air.
  • Comfortable noise levels.  External muffler reduces noise level to 80dBA @ 1 yd. with no load.
  • Heavy duty self-adjusting brake.
  • Standard upper & lower limit stops
  • Overload limiter.  Adjustable load limiter detects overload automatically and blocks air flow for lifting.
  • Grade 80 wear resistant load chain.



Product Type Air Hoist
Brand Harrington
Capacity (tons) 1/4, 1/2, 1, and 2 ton
Lift (feet) 10 ft. standard
Hoist Model TCR
Headroom (inches) 18.2, 18.3, 21.8
Speeds No Load 68/44, 34/22, 19/11
Contact your local Lifting Specialist for additional product specifications
