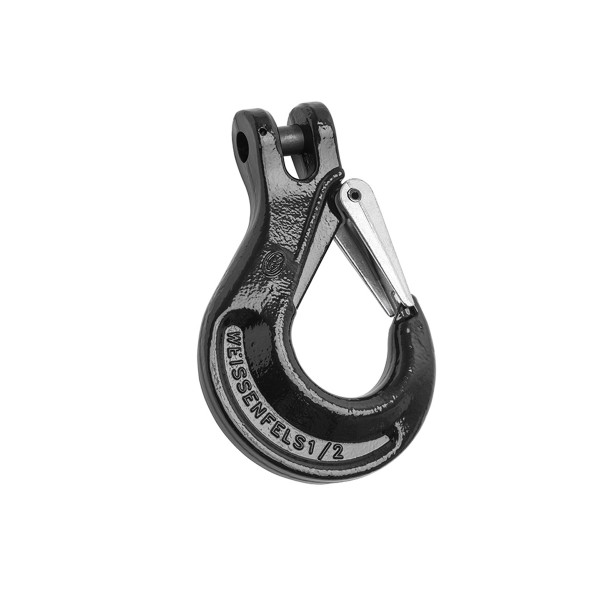

Peerless Peer-Lift Clevis Style Sling Hook With Latch (Grade 80)

Peerless Peer-Lift Clevis Style Sling Hook With Latch (Grade 80)

  • Proof tested at twice the working load limit.
  • Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
  • Meet or exceed ASTM A952 and OSHA 1910 standards.
Categories: , Tags: , , ,
Peerless Logo

Description

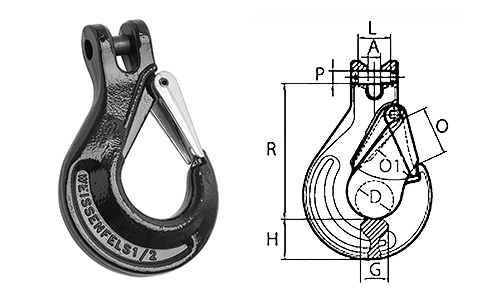

Peerless Peer-Lift Clevis Style Sling Hook (Grade 80) Spec Drawing

Stock # Chain Size Dimensions Lbs. Per Each WLL (lbs)*
Black Inches mm A D G H O O1 R PxL
8418280 9/32-5/16 7-8 0.35 0.98 0.75 1.10 1.26 1.02 3.72 0.38 x 0.91 1.34 4,500
8418480 3/8 10 0.45 1.18 0.98 1.30 1.54 1.22 4.29 0.49 x 1.16 2.47 7,100
8418680 1/2 13 0.57 1.50 1.18 1.57 1.89 1.54 5.31 0.63 x 1.46 4.65 12,000
8418780 5/8 16 0.69 1.73 1.46 1.85 2.17 1.77 6.10 0.79 x 2.05 7.50 18,100
8418880 3/4 19-20 0.91 2.05 2.01 2.05 2.40 2.09 7.20 0.94 x 2.87 14.99 28,300
8418980 7/8 22 0.96 2.36 1.97 2.44 2.80 2.40 8.35 1.06 x 2.80 19.84 34,200

Replacement Latch Kits:

  • 9/32” – 8410177
  • 3/8” – 8410277
  • 1/2” – 8410377
  • 5/8” – 8410477
  • 3/4” – 8410577
  • 7/8” – 8410677

* WARNING: Working load limit is not to be exceeded.
