Description

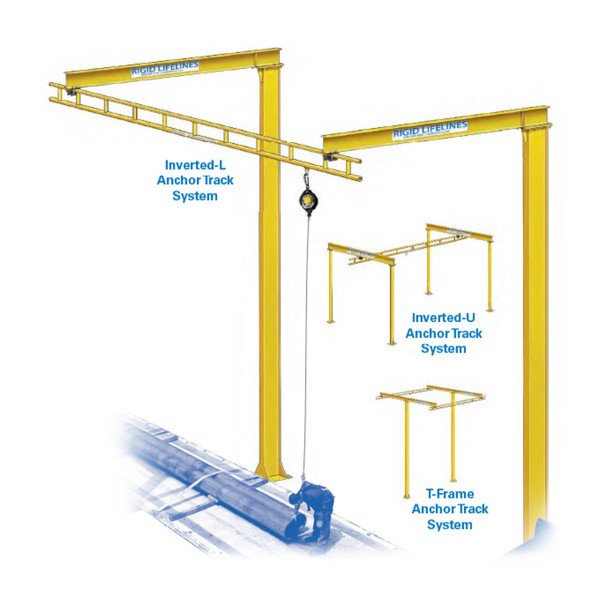

Inverted-L Anchor Track System
Wide flange steel columns with gusset reinforcements hold cantilevered headers from which the track(s) hangs. Each frame consists of a freestanding column topped with a header that forms the “L.”
- With three or more frames, track lengths are virtually unlimited.
- Trolley-hook height starting at 22 feet allows access to the tops of railroad cars, tankers, trailers, outdoor equipment, and systems
- Standard arm reach begins at 8 feet
- Requires concrete foundations
Inverted-U Anchor Track System
Steel columns hold I-beam headers from which the track(s) hangs. Each frame consists of two freestanding columns topped with a header that forms the “U.”
- With three or more frames, track lengths are virtually unlimited.
- May require concrete foundations, but they are smaller than the foundations required by other cantilevered systems
- Heights and track lengths are available per application
T-Frame Anchor Track System
Steel columns hold I-beam headers from which the track(s) hangs. Each frame consists of a freestanding column topped with a header that forms the “T.”
- With three or more frames, the parallel tracks can be designed to span any length.
- Service two lines of vehicles with only one row of columns
- Requires concrete foundations
