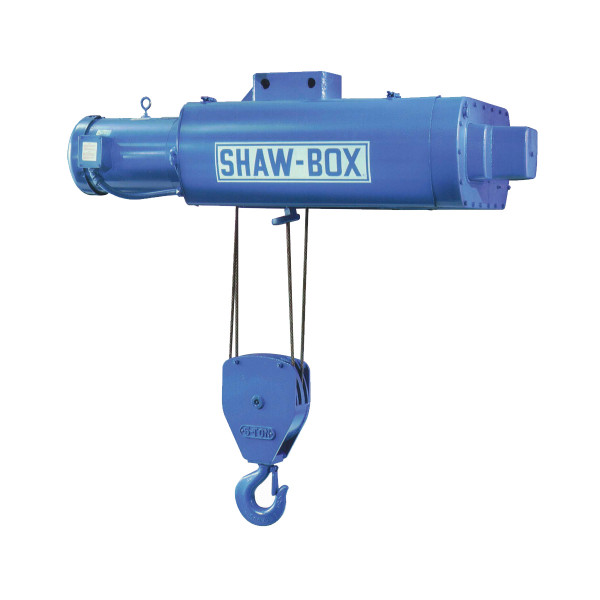

Shaw-Box 700 Series Wire Rope Electric Hoist—Deck-Mounted, Single-Reeved



1, 3, 5, 7-1/2 and 10 Ton Capacities with 12, 15, 18, 22, 23, 25, 26, 27, 35, 38, 40, 44, 47, 50, 55 and 83-Foot Lifts

Shaw-Box 700 Series Electric Hoist Deck Mounted (Single-Reeved). For operation in a variety of standard industrial, harsh or hazardous environments.

shawbox

Description

Features & Benefits:

  • One-piece welded steel frame ensures precise fit and long hoisting machinery life
  • Alloy aluminum gear case and cover is lightweight, yet rugged
  • Direct acting D.C. brake solenoid for smooth braking action
  • Multiple-disc motor brake for long life and maximum braking efficiency
  • Bearings supported in an independent gear case spider give a precise fit and allow removal of the gear case cover without disassembly of the gearing
  • Hinged control panel cover permits easy access to the control components
  • Improved plow steel preformed wire rope for maximum strength and life
  • Full-swiveling, heat-treated forged steel hook with spring loaded latch
  • Shrouded lower block to help prevent pinched fingers
  • Push-button control pendant for easy one-handed operation
  • Rugged, low-maintenance magnetic contactor control
  • High-torque, heavy-duty hoist motor for smooth load handling
  • Watershed and gaskets for tight frame cover seal and protection of internal components
  • Integrally welded mounting lug permits various trolley attachment options
  • Block-operated limit switch limits upward hook travel
  • Rope anchor, easily accessible for inspection and maintenance
  • Deep-grooved, large diameter rope drum helps prevent rope overwrap for longer rope life
  • Double-reduction helical gearing provides a smooth, quiet drive train
  • Positive-action, mechanical, load-lowering control brake also acts as a part of the hoist-holding brake system

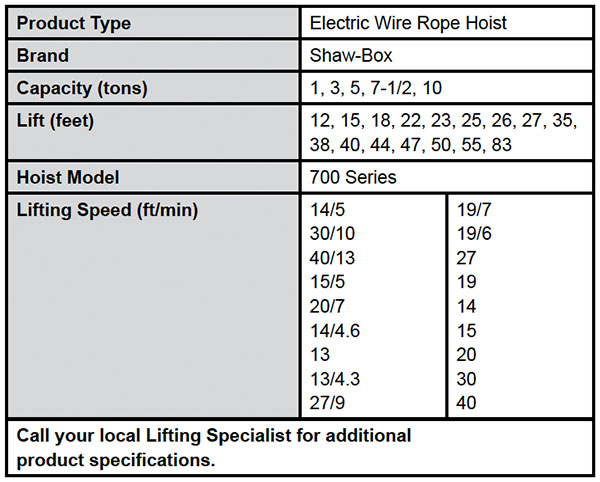

700 Series Wire Rope Electric Hoist—Deck-Mounted, Single-Reeved Specs
