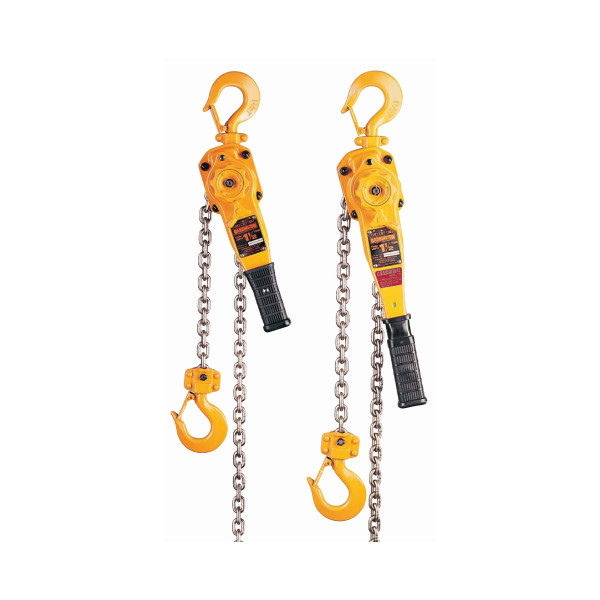

Harrington LB Lever Hoist

3⁄4, 1, 1-1⁄2, 2, 2-3⁄4, 3, 6 and 9 Ton Capacities with 5-Foot Standard Lift—10, 15 and 20-Foot lifts are also stocked. Non-standard lifts are available.

The Harrington LB Series of lever hoists offers a low headroom, compact design that is perfect for use in tight quarters. Regarded as the best lever hoist in the industry, the LB is recommended for use in heavy-duty construction work, mining, manufacturing, shipbuilding and day-to-day maintenance and repair.

Harrington Hoist Logo

Description

Features & Benefits:

  • Rugged, all-steel construction that actually weighs less than comparable aluminum models.
  • Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces. Includes two brake pawls for additional reliability.
  • Enjoy protection against dirt and moisture with a totally enclosed brake mechanism.
  • Ensure long life with machined, heat-treated, split-load, double-reduction gears.
  • Operate in close quarters with short steel handle and 15-degree recovery strokes.
  • Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load.
  • Equipped with standard rubber grip for non-slip operation.

Capabilities:

  • Grade 100 heat-treated load chain is nickel plated for corrosion resistance.
  • Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads. Top and bottom hooks rotate 360°.
  • Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity, in accordance with ASME B30.21 requirements.

Options:

  • Load limit warning handle
  • Top hook extender
  • Point load hook
  • Slip clutch
  • Inspection hook
  • Bullard® and Shur-Loc® hooks

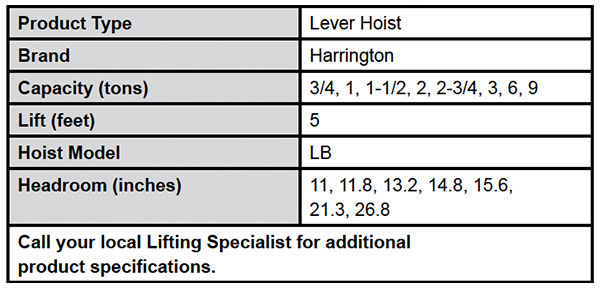

LB Lever Hoists Specs
