Simplex Electric Power Pumps

Category: Tags: , ,

Description

G1-Series Electric Power Pumps

Electric

Reservoir Capacity:

1 Gallon

Flow @ Rated Pressure:

19 Cu.In./Min.

Maximum Pressure:

10,000 PSI

  • Powered by a 115V – 60HZ, .5 hp universal motor (14,640 rpm).
  • Low startup voltage, draws 10 amps at full load (230V models available).
  • Two-speed pump operation provides fast tool performance.
  • External adjustable relief standard on all models.
 G1-Series Electric Power Pumps

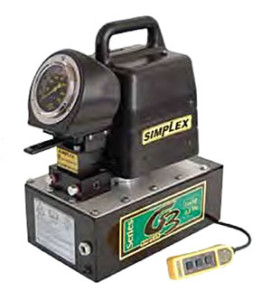

G3-Series Electric Power Pumps

Electric

Reservoir Capacity:

1 – 10 Gallons

Flow @ Rated Pressure:

46 Cu.In./Min.

Maximum Pressure:

10,000 PSI

  • Powered by a 115V – 60Hz, 1.13 hp universal motor (21,000 rpm).
  • Low startup voltage, draws 16 amps at full load (230V models available).
  • Equipped with a 15′ remote power controlled pendant.
  • Reservoirs available in 1 – 10 gallons; welded steel design.
  • Ideal for use with small, mid-sized hydraulic cylinders or tools.

G3-Series Electric Power Pumps

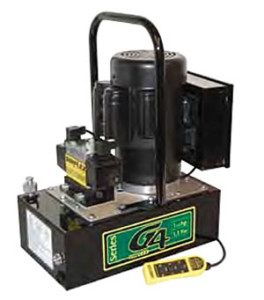

G4-Series Electric Power Pumps

Electric

Reservoir Capacity:

1.5 – 20 Gallons

Flow @ Rated Pressure:

55 Cu.In./Min.

Maximum Pressure:

10,000 PSI

  • Powered by a 115V – 60Hz, 1.5 hp induction motor (1,725 rpm).
  • Low startup voltage, draws amps at full load (230V models available).
  • High performance two-stage pump provides higher cross-over pressure for faster cycle times and equipment operation.
  • Ideal for use with mid sized hydraulic cylinders.

G4-Series Electric Power Pumps

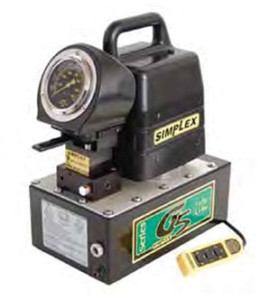

G5-Series Electric Power Pumps

Electric

Reservoir Capacity:

1.5 – 20 Gallons

Flow @ Rated Pressure:

55 Cu.In./Min.

Maximum Pressure:

10,000 PSI

  • Powered by a 115V – 60Hz, 1.5 hp universal motor (21,000 rpm).
  • Low startup voltage, draws 16 amps at full load (230V models available).
  • High performance two-stage pump provides higher cross-over pressure for faster cycle times and equipment operation.
  • Reservoirs available in 1.5 – 10 gallons; welded steel design.
  • Ideal for use with mid to large sized hydraulic cylinders or tools.



G5-Series Electric Power Pumps   G5-Series Electric Power Pumps

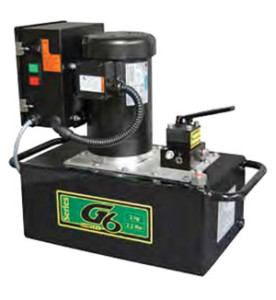

G6-Series Electric Power Pumps

Electric

Reservoir Capacity:

5 – 40 Gallons

Flow @ Rated Pressure:

100 Cu.In./Min.

Maximum Pressure:

10,000 PSI

  • Two-stage pump operation provides fast tool performance.
  • Ideal for use with mid- to large-sized hydraulic cylinders or tools.
  • Powered by a multi-voltage, 3 phase, 3 hp AC motor (3450 rpm); low startup voltage draws 9.5 amps (230v) at full load.
  • Perfect fit for production and multi-cylinder lift systems.
  • Quiet running, only (80dba).

G6-Series Electric Power Pumps
