Description

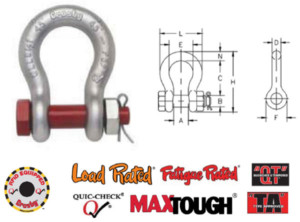

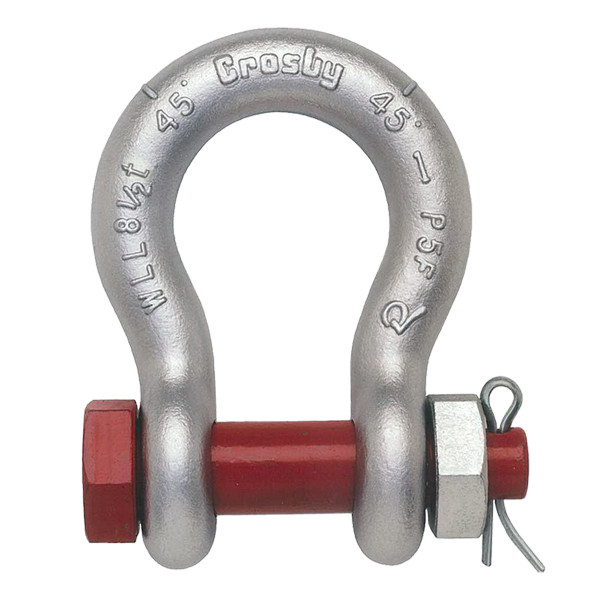

G-2130 Bolt type anchor shackles with thin head bolt – nut with cotter pin. Meets the performance requirements of Federal Specification RR-C-271F Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
- Shackles 25t and larger are RFID EQUIPPED.
- Approved for use at -40°C (-40°F) to 204°C (400°F).
- Meets or exceeds all requirements of ASME B30.26.
- Shackles 85 metric tons and larger are individually proof tested to 2.0 times the working load limit.
- Shackles 120 metric tons and larger are proof tested, Magnetic Particle Inspected and provided with Serialized Pin and Bow.
- Type Approval and certification in accordance with ABS 2006 Steel Vessel Rules 1-1-17.7, and ABS Guide for Certification of Cranes.
- 3.1 Certification as standard available for charpy and statistical proof test only up to 25 tons to DNV2.7-1 and EN13889.
- Crosby 2t through 25t G2130 anchor shackles are type approved to DNV Certification Notes 2.7-1- Offshore Containers. These Crosby shackles are statistical proof and impact tested to 42 joules (31 ft.-lbs.) min. ave. at -20°C (-4°F). The tests are conducted by Crosby and 3.1 test certification is available upon request.
- All other 2130 and all 2150 shackles can meet chary requirements of 42 joules (31 ft.-lbs) avg. at -20°C (-4°F) upon special request.
- Look for the Red Pin®…the mark of genuine Crosby quality.

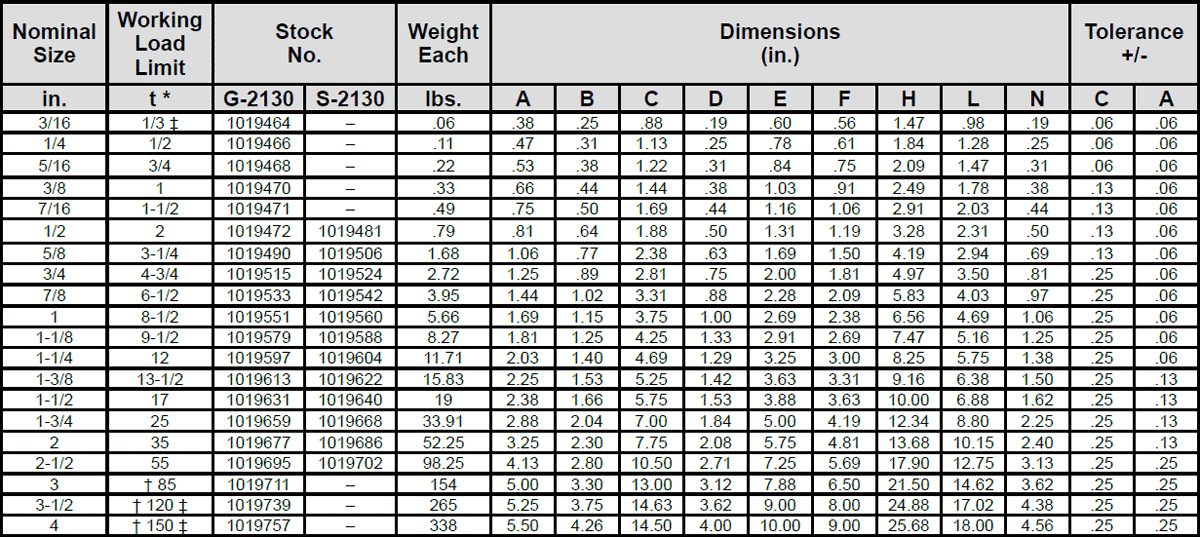

* Note: Maximum Proof Load is 2.0 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit.
† Individually Proof Tested with certification.
‡ Furnished in Anchor style only and furnished with Round Head Bolts with welded handles.
