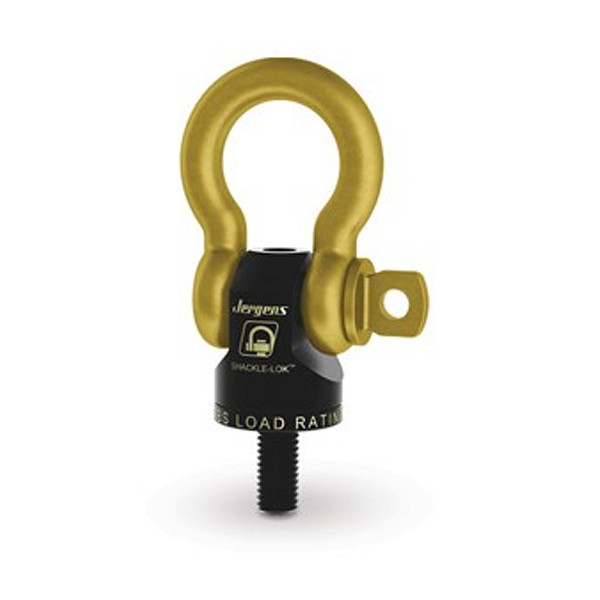

Jergens Shackle-Lok™ Hoist Rings

Jergens Shackle-Lok™ combines the strength of a hoist ring with the versatility of a shackle. Its unique, 3-piece design is ideal for use with a variety of lift methods, and shackles are interchangeable. Shackle-Lok™ is simply the industry’s most efficient below-the-hook lifting device from a weight-to-load rating ratio.

  • Internal ball bearings (440 Stainless Steel) allow for smooth rotation under load
  • Full 360° Swivel and 180° Pivot Action
  • Easy to remove shackle
  • Rated 5:1 Strength Factor in Vertical Pull
  • Bolt & Base Material: Alloy Steel 4140; C40-44
Jergens

Description

  • Bolt and Base Finish: Black Oxide
  • Bolt and Base are Magnetic Particle Inspected
  • Shackle & Shackle Pin: 1035 Carbon Steel; C18-24
  • Shackle Finish: Zinc Plated with Gold Colored Conversion Coating
  • Proof Tested to 200% of Rated Load Capacity
  • Certificate of Proof Test provided
  • Also available in Metric sizes
