Straightpoint BlueLink

FEATURES

  • Bluetooth wireless connection to any iOS or Android device with SP HHP App
  • Wireless Range of 328ft/100m
  • Battery Life of 500hrs
  • Environmentally Sealed to IP67/NEMA6
  • 90db Audible alarm alert for high/low values
  • Internal Antennae
  • Remote On-Off from HHP App
  • 100 Hz Peak Hold
  • Push button Tare
  • Fatigue Rated
Crosby LogoStraightpoint Logo

Description

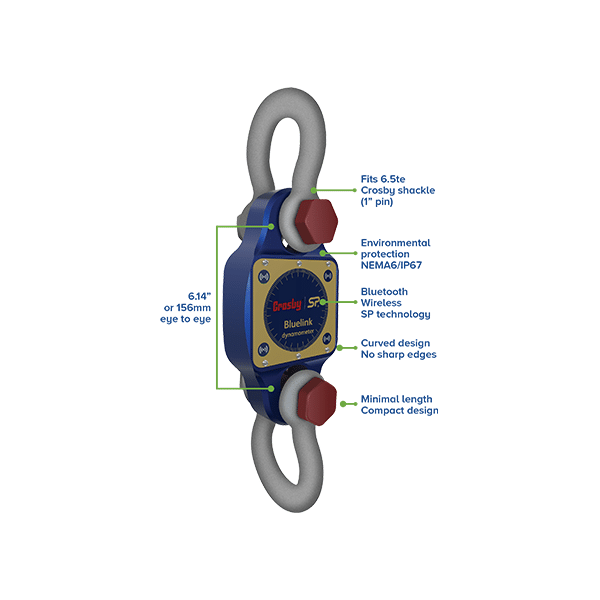

Designed to replace outdated mechanical products still in the field this 14,300lb (6500kg) Dynamometer, the “BlueLink” is the latest SP product to feature our proprietary Bluetooth wireless technology.

The Bluetooth signal effortlessly connects to any iOS or Android smartphone that has our free HHP app installed and provides the operator a wireless range of up to 328ft or 100m – allowing them to stand themselves in a safe position from the load with no requirement to read a load on the load cell itself. The app will also allow the operator to log data versus time or on events such as over or underload and the adjustable alarm will alert the operator on their smartphone if any overload is occurring.

Rigged using industry-standard shackles such as Crosby G2130 the Bluelink has been designed to minimize headroom (just 6” or 156mm from eye to eye) and its compact lightweight design does not sacrifice on strength with a safety factor of over 500%.

Fatigue rated the Bluelink is constructed from high-quality aerospace-grade aluminum and hard anodized it features an advanced internal design structure. This design not only provides the product with an unrivaled strength to weight ratio, but it also allows the use of a separate internal sealed enclosure providing the load cell’s electronic components with NEMA6 or IP67 environmental protection even with the battery cover plate missing, making this industry compact dynamometer even more suitable for use in the harshest industrial or leisure environments.

The BlueLink is powered by four x standard AA alkaline batteries that provide in excess of 500 hours transmission time and its internal antennae ensure loads to an accuracy of 0.1% FS are transmitted safely.

Brand

Crosby

Crosby is the world leader in rigging, lifting, and material handling hardware. We set the standard for quality, training, and technical expertise in the field.

The Crosby Group was the first to:

  • Produce the forged wire rope clip (1880s)
  • Produce wire rope guards on sheaves that can be opened for easy reeving (1925)
  • Forge load rating (working load limit) directly onto product (1958)
  • Quench and temper fittings for more reliable performance (1973)
  • Forge Product Identification Code (PIC) into each product that allows traceability to its respective date of production and material certification (1977)
  • Rate products as Fatigue Rated (1991)
  • Forge patented QUIC-CHECK™ markings into hooks, shackles, and various other rigging products to assist users in determining proper use (1992)
  • Produce a crane block that can be reeved without removing the wedge socket from wire rope in the United States (1996)
Crosby Logo

Straightpoint

Crosby | SP have manufacture and supply cabled and wireless telemetry loadlink, load shackles, load cells, digital dynamometers, compression loadcells, mini weighers, running line tensiometers and software solutions, as well as a range of intrinsically safe load cells.
Straightpoint Logo
