Straightpoint COLT

FEATURES

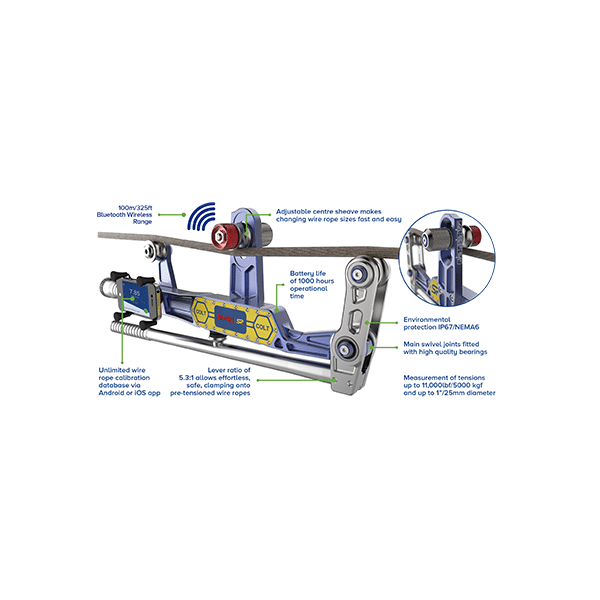

  • Unlimited wire rope calibration database via Android or iOS app
  • Main swivel joints fitted with high-quality bearings
  • Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes
  • Wireless Bluetooth 4.1 enabling operator to stand at a safe distance up to 328 feet or 100 meters
  • Quick intuitive adjustable center sheave makes changing wire rope sizes fast and easy
  • No easily broken external antennae
  • High waterproof resistant design IP67 or NEMA6 for all-weather use
  • The massive battery life of 1000 hours of operational time
  • As the library of wire rope diameters and constructions is increased each app user will benefit when they update and receive any new data.
  • Cable gauge included.
Straightpoint Logo

Description

The Straightpoint COLT is a lightweight wire rope tension meter or shunts tension meter for fast and accurate measurement of tensions up to 11,000lb or 5000 kg and up to 1” or 25mm diameter.

Manufactured using an integral, high accuracy, Bluetooth module the COLT transmits load data wirelessly to any smart device running our Android or iOS app.

Constructed from aerospace-grade aluminum the COLT digital tensiometer is lightweight and easy to handle and operates on wires that are already under tension. Once in place, it allows the operator to quickly check tension on cables or wire ropes set at any angle.

Multiple drops tested from 3 meters or 10 feet.

A built-in magnetic smart device holder allows the COLT to be used as a traditional tension meter with onboard display or the smartphone can be handheld or mounted elsewhere.

Supplied in a purpose-made carry case the COLT is portable and utilizes standard alkaline batteries making this perfect for on-site cable tension measurement across the world.

An optional calibration verification tool (CVT) allows the operator to self-check & verify calibration accuracy in the field if required.

Brand

Straightpoint

Crosby Straightpoint manufactures and supplies cabled and wireless telemetry loadlink, load shackles, load cells, digital dynamometers, compression load cells, mini weighers, running line tensiometers and software solutions, as well as a range of intrinsically safe load cells.
