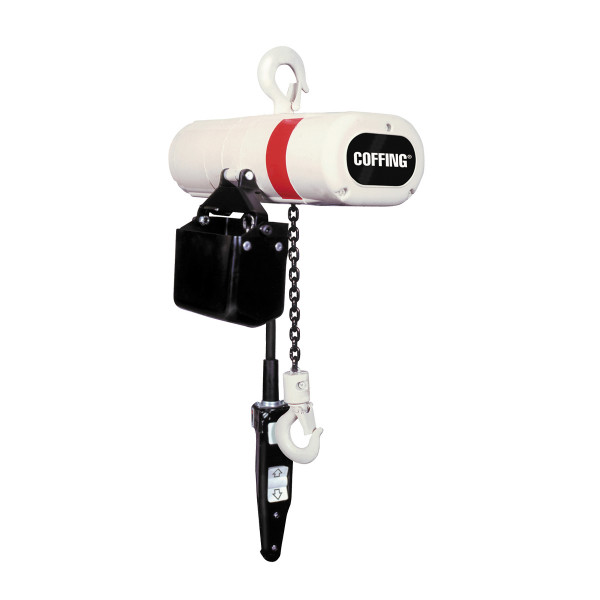

Coffing JLC Hook & Lug Suspension Model Hoist

1/8, 1/4, 1/2, 1 and 2 Ton Capacities with 10, 15 and 20-Foot Standard Lifts—Other lifts available. Standard push button drop is 4 feet less than lift. CSA approved.

Coffing JLC Hook and Lug Suspension Models are designed for industrial-duty performance. Compact in size, the JLC features a multiple-disc motor brake, overload clutch and chain end stop for safety.

Coffing Hoists Banner

Description

Features & Benefits:

  • Voltages—115/230 – single-phase; 230/460, 208, 380, 415, 575 – three-phase, 60 hertz standard, 50 hertz available.
  • Two-speed hoist models optional with 3 to 1 speed ratio, three-phase, single-voltage only.
  • Limit switches adjustable to regulate upper and lower load travel. Brass nuts standard for improved repeatability and chain positioning.
  • Precision machined alloy steel gears run in oil bath for longer, quieter operation.
  • NEMA 3R Push button station ergonomic design fits operator’s hand for thumb or two-handed operation. 24 Volt Control for operator safety. 115 Volt Control available upon request.
  • Compact aluminum housing for portability and ease of installation.
  • Full line of accessories available, including Variable Frequency Drives.
  • Chain containers standard on lifts up to 20 feet single chain / 10 ft. double chain.
  • Lifetime warranty

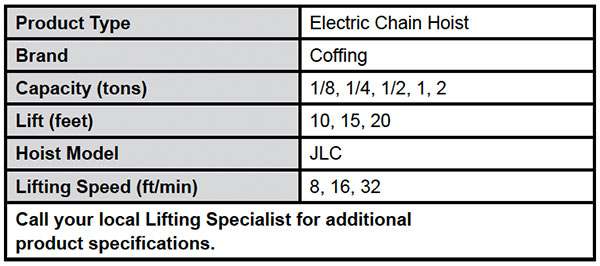

JLC Hook & Lug Suspension Model Hoists Specs

NEED HOIST REPAIR OR PARTS?

We do repairs in-house and stock a full line of parts.
