Cortland Eye and Eye Lifting Slings

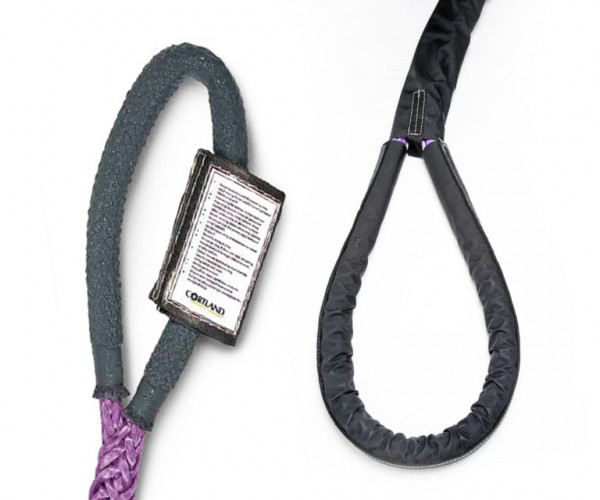

When spliced into an eye and eye sling, UHMWPE will essentially act as a size-for-size replacement for a traditional steel wire rope sling in terms of strength. Each end is terminated using a Cortland-approved splice which becomes locked in place after proof load testing.

There is a minimum length requirement for eye and eye slings, due to the splice length and free span requirements.

Cortland Logo

Description

Eye-and-Eye fabrication with splice-terminated eyes each end:

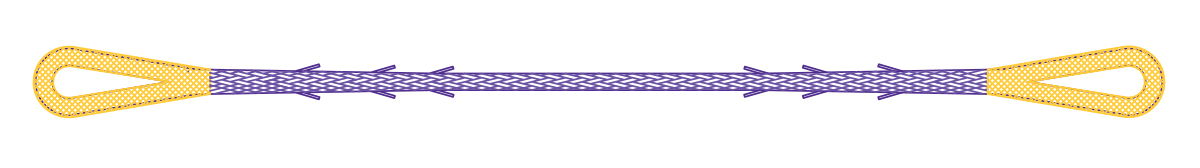

Cortland Eye and Eye Sling Illustration

Refer to Plasma® Braided Slings PDF for 60°, 45°, and 30° specifications.

Nominal SizeVerticalChokerBasket
Dia.
inch
Circ.
inch
MBL—
Pounds
Minimum Sling Length
Ft/Inch
Sling Capacity Ratings at
Work Load Limits (WLL) in Pounds

Plasma® 12 Strand

1/43/48,0002′ 1″1,6001,1203,200
5/1615/1611,7002′ 5″2,3401,6304,680
3/81-1/817,5002′ 8″3,5002,4507,000
7/161-1/421,0003′ 0″4,2002,9408,400
1/21-1/231,3003′ 2″6,2604,38012,500
9/161-3/437,9003′ 6″7,5805,30015,100
5/8251,4003′ 10″10,2007,19020,500
3/42-1/468,5004′ 4″13,7009,59027,400
13/162-1/274,0004′ 7″14,80010,30029,600
7/82-3/492,6004′ 11″18,50012,90037,000
13110,0005′ 5″22,00015,40044,000
1-1/163-1/4129,2005′ 8″25,80018,00051,600
1-1/83-1/2147,0005′ 11″29,40020,50058,800
1-1/43-3/4165,0006′ 6″33,00023,10066,000
1-5/164196,0006′ 10″39,20027,40078,400
1-1/24-1/2221,0007′ 7″44,20030,90088,400

Plasma® 12×12

1-5/8″5291,0009′ 1″58,20040,700116,400
1-3/4″5-1/2″314,0009′ 10″62,80043,900125,600
26355,00011′ 0″71,00049,700142,000
2-1/8″6-1/2″428,00011′ 7″85,60059,900171,200
2-1/4″7481,00012′ 4″96,20067,300192,400
2-1/2″7-1/2″530,00013′ 6″106,00074,200212,000
2-5/8″8596,00014′ 1″119,20083,400238,400
2-3/4″8-1/2″660,00014′ 8″132,00092,400264,000
39780,00016′ 0″156,000109,200312,000
3-1/8″9-1/2″850,00016′ 7″170,000119,000340,000
3-1/4″10940,00017′ 2″188,000131,600376,000
3-1/2″10-1/2″1,108,00018′ 6″221,600155,100443,200
3-5/8″111,250,00019′ 1″250,000175,000500,000
3-3/4″11-1/2″1,317,00019′ 8″263,400184,300526,000
4121,520,00021′ 0″304,000212,800608,000
4-1/8″12-1/2″1,622,00021′ 7″324,400227,000648,000
4-1/4″131,697,00022′ 2″339,400237,500678,000
4-1/2″13-1/2″1,827,00023′ 6″365,400255,700730,000
4-5/8″141,880,00024′ 1″376,000263,200752,000
4-3/4″14-1/2″1,927,00024′ 8″385,400269,700770,000
5152,069,50025′ 11″413,900289,700827,000
5-1/8″15-1/2″2,212,00026′ 7″442,400309,600884,000
5-1/4″162,355,00027′ 2″471,000329,700942,000
5-1/2″16-1/2″2,497,50028′ 5″499,500349,600999,000
5-5/8″172,640,00029′ 1″528,000369,6001,056,000
5-3/4″17-1/2″2,782,50029′ 8″556,000389,5001,113,000
6182,925,00030′ 11″585,000409,0001,170,000
6-1/818-1/23,068,00031′ 6″613,000429,0001,227,000
6-1/4193,210,50032′ 2″642,000449,0001,284,000
6-1/219-1/23,353,00033′ 5″670,000469,0001,341,000
6-5/8203,496,00034′ 0″699,000489,0001,398,000
6-3/420-1/23,638,50034′ 8″727,000509,0001,455,000
7213,781,00035′ 11″756,000529,0001,512,000
7-1/821-1/23,963,50036′ 6″792,000554,0001,585,000
7-1/4224,066,00037′ 1″813,000569,0001,626,000
7-1/222-1/24,209,00038′ 5″841,000589,0001,683,000
7-5/8234,351,50039′ 0″870,000609,0001,740,000
7-3/423-1/24,494,00039′ 7″898,000629,0001,797,000
8244,637,00040′ 11″927,000649,0001,854,000
8-1/824-1/24,779,00041′ 6″955,000669,0001,911,000
8-1/4254,922,00042′ 1″984,000689,0001,968,000




Patented Plasma® 12×12 braided construction creates strong lifting slings that are perfect for long length lift situations.

Cortland’s patented Plasma® rope is strong enough for very heavy lifts yet durable enough for repeated use. Our exclusive Plasma technology processes UHMWPE fibers into maximum strength efficiency. These fibers are then braided into a torque-free rope which is firm, yet flexible, and offers the ability to produce very long lengths. Utilizing the largest 12-strand braider in the world, Cortland can produce large diameters (up to 200mm) and long lengths.

Unlike wire ropes and jacketed round slings, Plasma 12×12 rope slings are easy to inspect. If repair is needed, the 12×12 construction offers the ability to replace worn strands. Plasma 12×12 rope slings are also neutrally buoyant, and do not absorb water, so there is no reduction in lifting capacity once immersed.

These slings are popular in offshore crane lifting systems because of their light weight and ease in handling.
