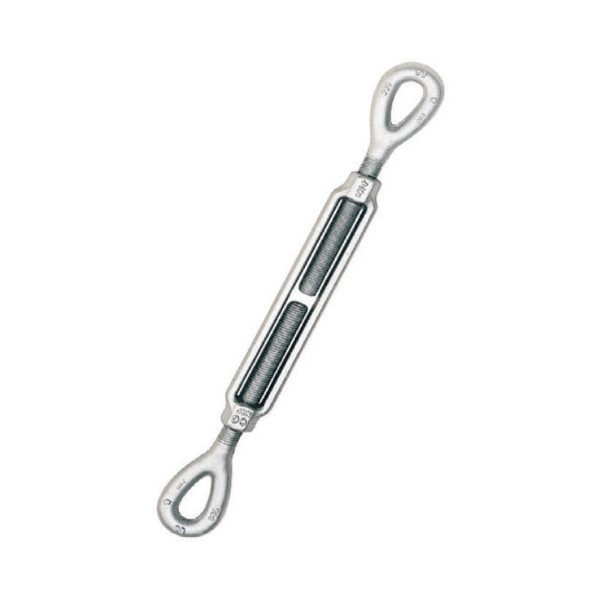

Crosby HG-226 Eye and Eye Turnbuckles

Meets the performance requirements of Federal Specifications FF-T-791b, Type 1, Form 1 — CLASS 4, and ASTM F-1145, except for those provisions required of the contractor.

  • End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
  • Hot Dip galvanized steel.
  • Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckle sizes 1/4″ through 2-1/2″, a shackle one size smaller can be reeved through eye.
  • Modified UNJ thread on end fittings for improved fatigue properties. Body has UNC threads.
  • Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load and temperature requirements. Importantly, these turnbuckles meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
  • TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
  • Lock Nuts available for all sizes.
  • Fatigue Rated.

Description

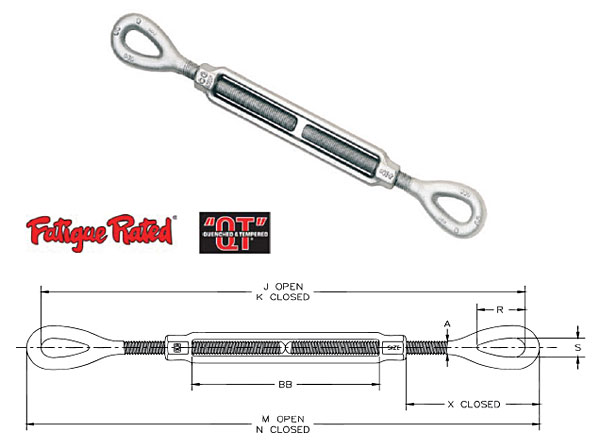

HG-226 Eye & Eye Turnbuckles

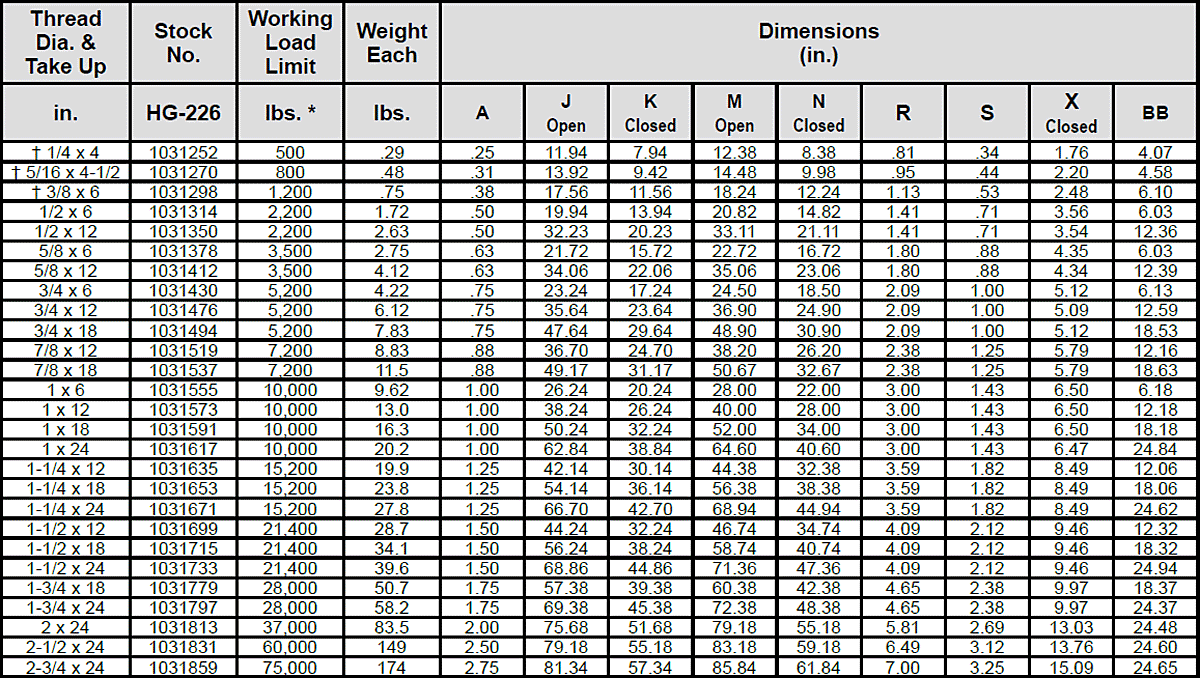

HG-226 Eye & Eye Turnbuckles Table

* Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.

† Mechanical Galvanized



All product warnings: Warnings Page
