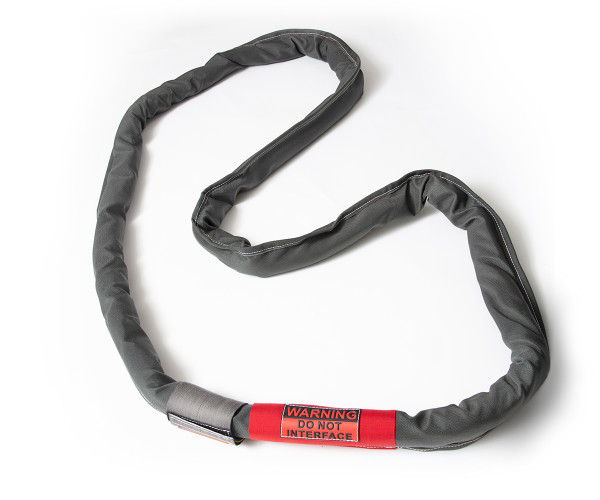

Description
Features and Benefits:
Features and Benefits:- Stronger, safer, and easier to handle than steel
- Lightweight and flexible
- Short lengths available
- Matched slings are easily achieved
- Vertical capacities from 40,000 to 500,000 lbs as standard
- Friendly on painted surfaces or sensitive equipment
- Durable construction
- Repairable or replaceable jacket
Specifications
- Materials: UHMWPE
- Construction: parallel laid endless filaments
- Jacket: double layer nylon durable jacket with wear indicator; optional special-design wear protection in critical areas is available
- Capacity: 40,000 lbs (18.2Te) to 500,000 lbs (226.8Te) higher capacities are available upon request
- Length: 5ft (1.52 m) to 72 ft (22 m); longer lengths available upon request
- Length tolerance: +/- 0.25% of nominal length, +/- 0.394 inches (10 mm) between matched sets

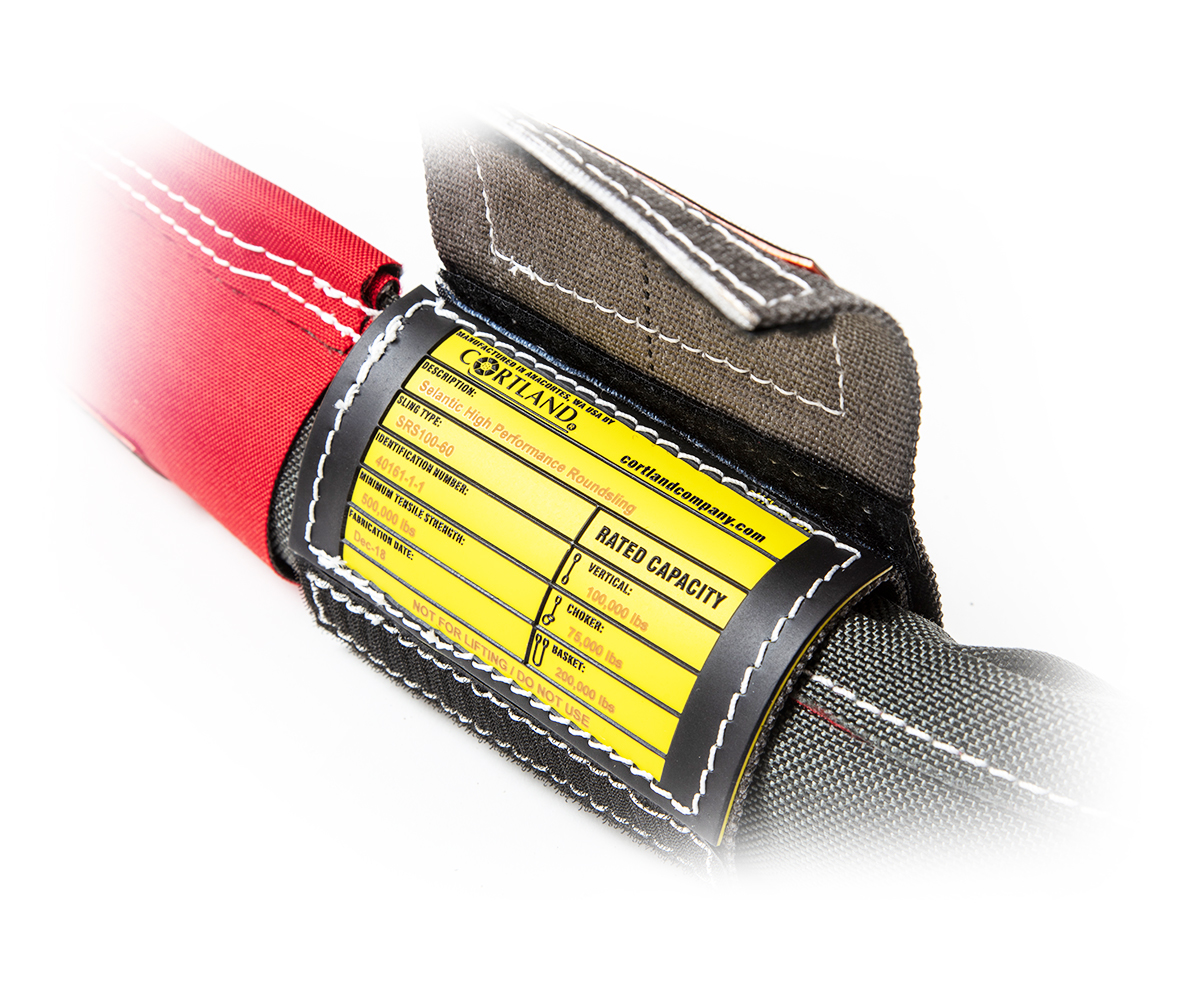

The below slings are available as standard, in lengths varying from a short 5 ft (1.52 m) up to 72 ft (22 m); please specify length at time of order. Higher capacities and custom designs are available upon request. All Cortland SRS™ slings are proof loaded and length verified and supplied with a proof loading certificate; third party witnessing is available upon request.
Vertical Lift Rating to ASME B30.9 (5:1 WLL) | |||||||
|---|---|---|---|---|---|---|---|
| Rated Capacity | Sling Details | ||||||
| Part No | Vertical (lbs) | Choker (lbs) | Basket (lbs) | Approximate Diameter (inch) | Weight per foot (lbs/ft) | Minimum Bending Diameter (inch) | Minimum Width (inch) |
| SRS-40 | 40,000 | 32,000 | 80,000 | 1.97 | 0.85 | 1.95 | 2.56 |
| SRS-50 | 50,000 | 40,000 | 100,000 | 2.22 | 1.05 | 2.14 | 2.89 |
| SRS-60 | 60,000 | 48,000 | 120,000 | 2.42 | 1.21 | 2.33 | 3.15 |
| SRS-70 | 70,000 | 56,000 | 140,000 | 2.64 | 1.42 | 2.51 | 3.43 |
| SRS-85 | 85,000 | 68,000 | 170,000 | 2.93 | 1.71 | 2.78 | 3.81 |
| SRS-100 | 100,000 | 80,000 | 200,000 | 3.17 | 1.97 | 3.05 | 4.12 |
| SRS-125 | 125,000 | 100,000 | 250,000 | 3.59 | 2.47 | 3.50 | 4.67 |
| SRS-150 | 150,000 | 120,000 | 300,000 | 3.94 | 2.94 | 3.93 | 5.12 |
| SRS-175 | 175,000 | 140,000 | 350,000 | 4.29 | 3.43 | 4.35 | 5.58 |
| SRS-200 | 200,000 | 160,000 | 400,000 | 4.64 | 3.96 | 4.76 | 6.03 |
| SRS-250 | 250,000 | 200,000 | 500,000 | 5.22 | 4.94 | 5.56 | 6.79 |
| SRS-275 | 275,000 | 220,000 | 550,000 | 5.49 | 5.43 | 5.94 | 7.14 |
| SRS-300 | 300,000 | 240,000 | 600,000 | 5.72 | 5.88 | 6.31 | 7.44 |
| SRS-400 | 400,000 | 320,000 | 800,000 | 6.72 | 7.97 | 7.70 | 8.74 |
| SRS-500 | 500,000 | 400,000 | 1,000,000 | 7.62 | 10.12 | 8.92 | 9.91 |
