Description

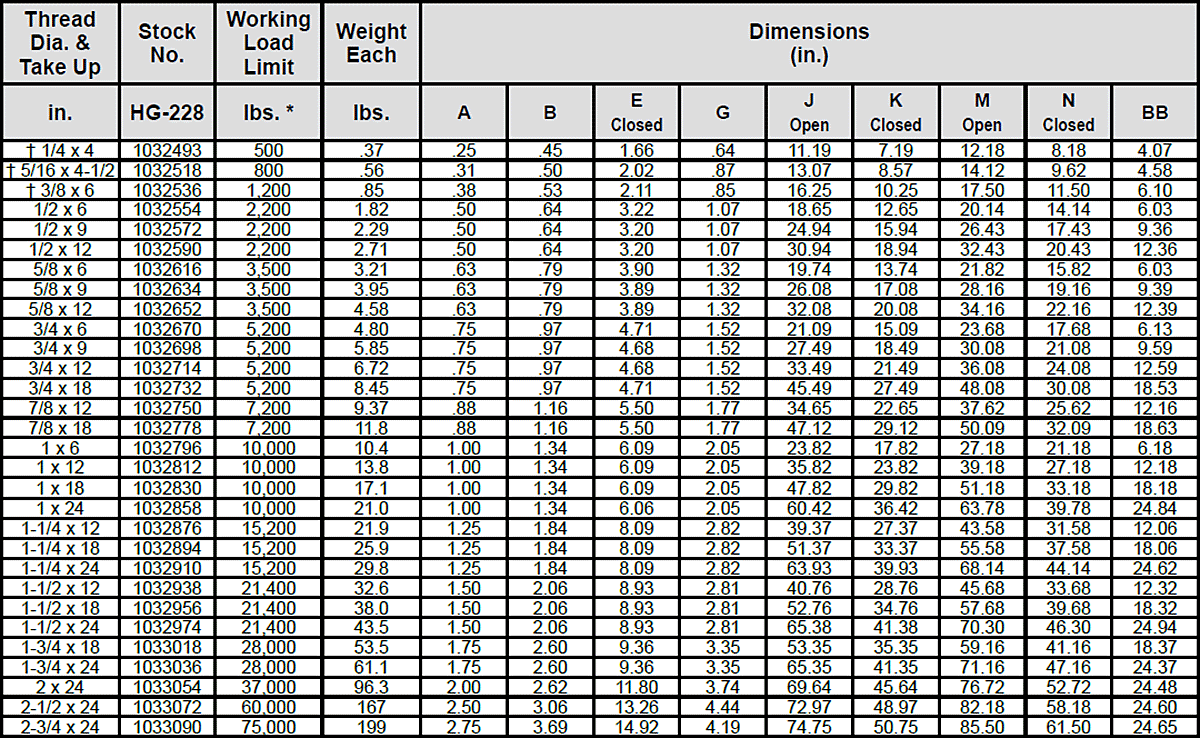

* Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.
† Mechanical Galvanized

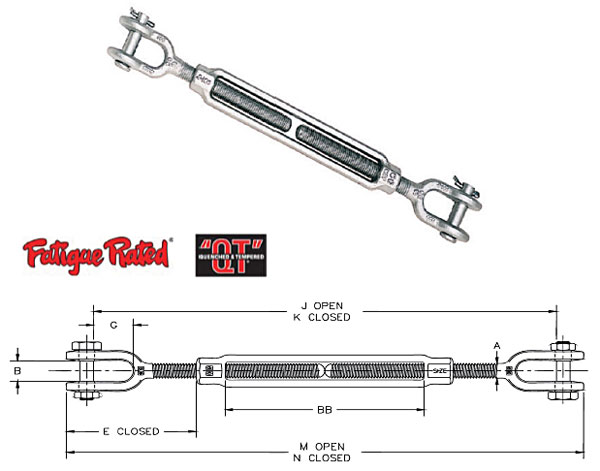

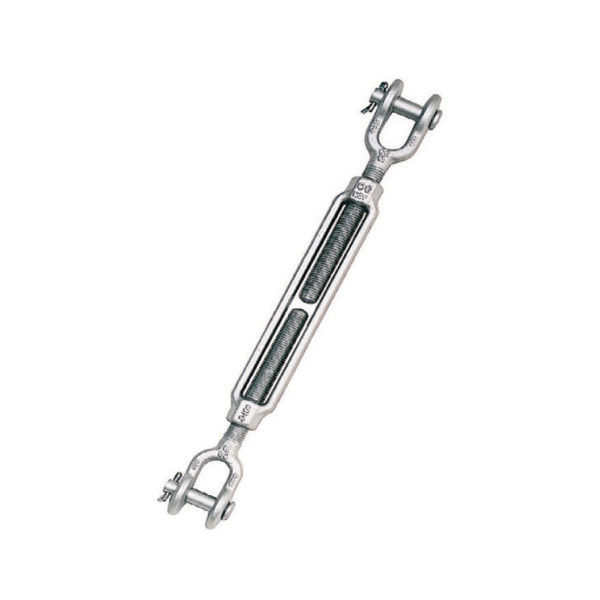

Crosby HG-228 Jaw and Jaw Turnbuckles
Meets the performance requirements of Federal Specifications FF-T-791b,Type 1, Form 1 — CLASS 7, and ASTM F-1145, except for those provisions required of the contractor.
- End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
- Hot Dip galvanized steel.
- TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
- Forged jaw ends are fitted with bolts and nuts for 1/4″ through 5/8″, and pins and cotters on 3/4″ through 2-3/4″ sizes.
- Modified UNJ thread on end fittings for improved fatigue properties.
- Body has UNC threads.
- Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load and temperature requirements. Importantly, these turnbuckles meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
- Lock Nuts available for all sizes.
- Fatigue Rated.
