Matt Florjancic

“Knowledge has to be improved, challenged, and increased constantly, or it vanishes.”

Management consultant Peter Drucker may not have been directly talking about the lifting and rigging industry, but his words are especially important when it comes to knowing how to safely conduct overhead lifts. That is why the American Society of Mechanical Engineers (ASME) produces standards for the lifting and rigging industry, where hardware usage is defined in great detail.

Turnbuckles are adjustable devices consisting of three primary components: a body, a right-hand threaded end fitting and a left-hand threaded end fitting. Turnbuckles have three types of end fittings (hook, eye, or jaw) and can come in combinations with different fittings on the ends of the same piece of hardware. Additionally, turnbuckles can be open-bodied or pipe-bodied, depending on the needs to do your job safely.

To always ensure the turnbuckle you select is in compliance with the ASME B30.26 Rigging Hardware standard, you need to understand the standards and proper way to use these pieces of adjustable hardware.

In this article, you will learn the following:

  • Basics of turnbuckles
  • Rigging best practices
  • Inspections of turnbuckles
  • Removal from service criteria for turnbuckles

What Are the Basics of Turnbuckle Usage in the Field?


How Should Turnbuckles Be Used in Rigging, According to ASME Standards? - What Are the Basics of Turnbuckle Usage in the Field?

Materials

According to the ASME B30.26 Rigging Hardware standard, the hardware, excluding bushings and bearings, shall have sufficient ductility to permanently deform before losing the ability to support the load at the temperatures the manufacturer has specified for use.

Design Factor

Design factor is defined by the standard as the “ ratio between nominal or minimum breaking strength and rated load of the rigging hardware.”

According to the ASME B30.26 standard, the design factor for all adjustable hardware shall be a minimum of 5.

Rated Loads

A rated load is defined in the standard as “the maximum allowable working load established by the rigging hardware manufacturer. The terms ‘rated capacity’ and ‘working load limit’ are commonly used to describe rated load.”

Rated load shall be in accordance with the recommendation of the hardware manufacturer.

Proof Test Requirements

  • New adjustable hardware is not required to be proof tested unless specified by the purchaser.
  • All repairs to swivel hoist rings with bushings or bearings should be proof tested.
  • Proof-tested adjustable hardware shall be inspected after the test for the conditions stated in para. 26-2.8.5.

Proof Load Requirements

The proof load shall be a minimum of 2 times the rated load.

Operating Practices for Turnbuckles

Adjustable Hardware Selection

“Adjustable hardware having suitable characteristics for the type of load, hitch, angle of loading, and environment shall be selected in accordance with the recommendations of the adjustable hardware manufacturer or a qualified person.”

Additional Notes address the following:

  • The angle of loading affects the stress in the hardware. As the horizontal angle decreases, the stress increases.
  • The integrity of the load where the adjustable hardware attaches is the responsibility of the end user.
    • The rated load of the adjustable hardware shall not be exceeded.
    • Adjustable hardware that appears to be damaged shall not be used until inspected and accepted as usable.

Cautions to Personnel

To ensure a safe working environment for riggers and anyone else on the job site, ASME lists several things that should be addressed and / or monitored closely before, during, and after overhead lifts with adjustable hardware:

  • All portions of the human body shall be kept from between the rigging hardware, the load, and any other rigging during lifting or load-handling activities.
  • Personnel should stand clear of the suspended load.
  • Personnel should stand clear of rigging when it is under tension.
  • Personnel shall not ride rigging hardware.

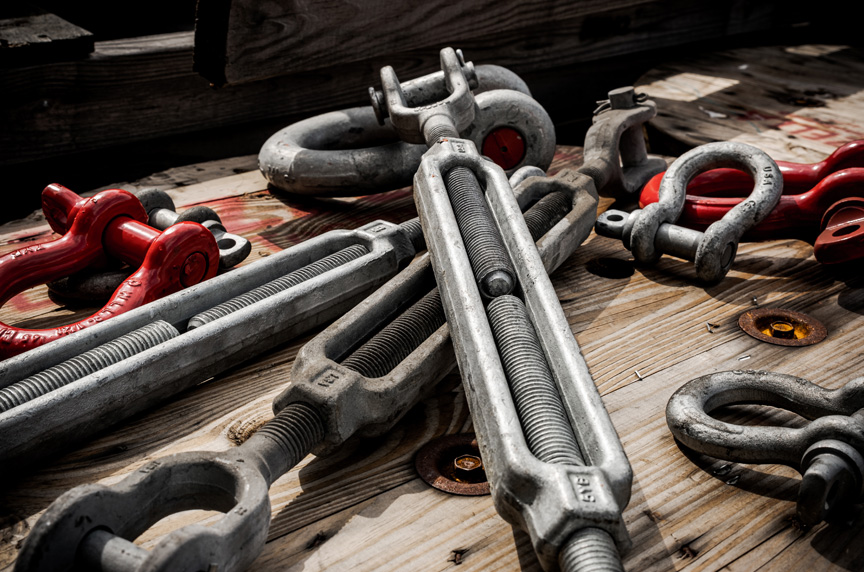

What Are the Rigging Practices for Turnbuckles?


How Should Turnbuckles Be Used in Rigging, According to ASME Standards? - What Are the Rigging Practices for Turnbuckles?

Like all other forms of adjustable hardware, including eyebolts, swivel hoist rings, and eye nuts, turnbuckles are governed by ASME standards, and ASME B30.26 outlines the following rigging practices:

  • Turnbuckle end-fitting threads shall be fully engaged in the body threads. NOTE: Pipe bodies conceal the length of thread engagement. Verify full engagement before loading.
  • Components, including pins, bolts, nuts, or cotter pins used with jaw ends, shall be in good working condition prior to use.
  • If locking nuts are used, they shall be compatible with the threads of the turnbuckle end.
  • Contact with obstructions that could damage or bend the turnbuckle should be avoided.
  • Shock loading should be avoided.
  • The load applied to the turnbuckle should be in line and in tension.
  • Turnbuckles should not be side loaded.
  • Turnbuckles should be rigged or secured to prevent unscrewing during lifting or load-handling activities.
  • For long-term installations, turnbuckles shall be secured to prevent unscrewing.
  • Turnbuckles should not be dragged on an abrasive surface.
  • Turnbuckles should be adjusted with a properly sized wrench, used on the wrench flats of the turnbuckle body.

Subscribe to The Lifting & Rigging Channel on YouTube

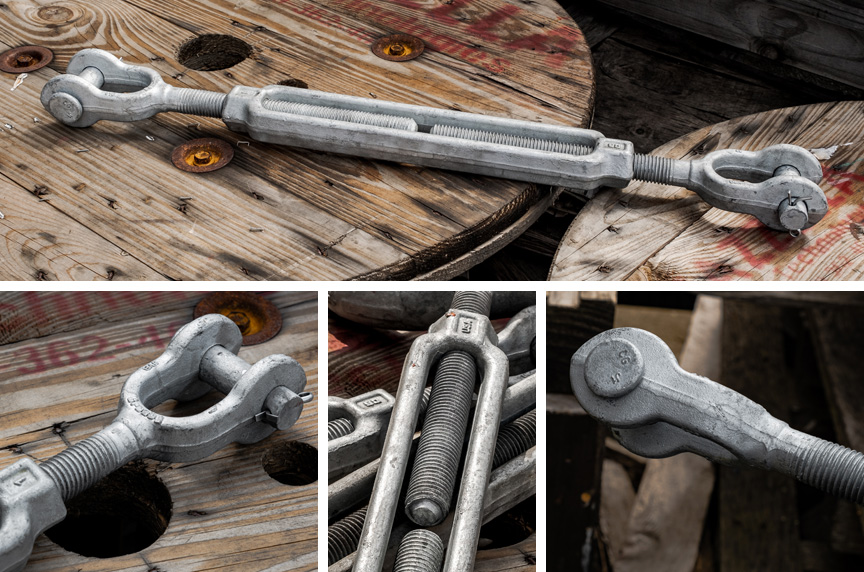

What Needs to be Marked on a Turnbuckle?


According to ASME B30.26 Rigging Hardware, turnbuckles, like eyebolts and eye nuts, are required to be “durably marked by the manufacturer to show” the following:

  • Name or trademark of manufacturer
  • Size or rated load
  • Grade for alloy eyebolts

Under the subsection ASME B30.26-2.5.3 Maintenance of Identification, “turnbuckle, eyebolt, eye nut, and swivel hoist ring identification should be maintained by the user so as to be legible throughout the life of the hardware.”

Also, a “rated load shall be in accordance with the recommendation of the hardware manufacturer.”

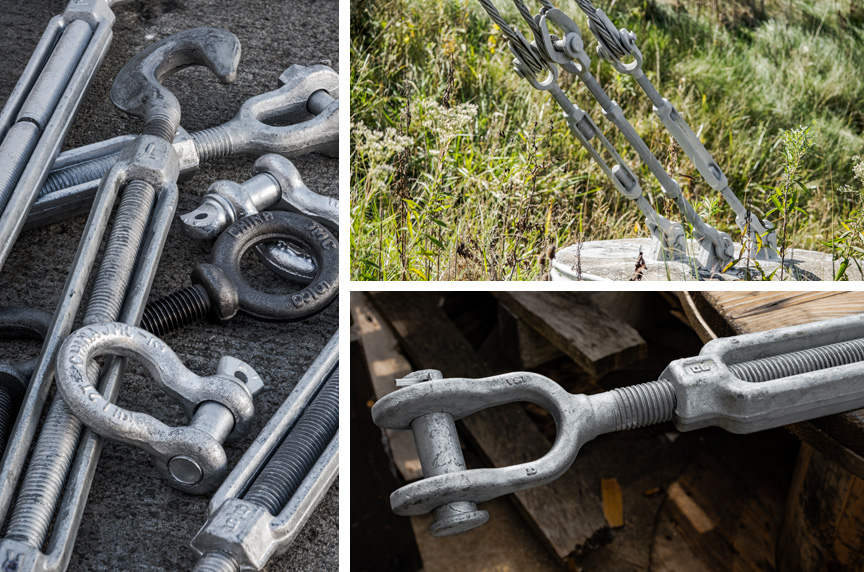

Factors to Consider When Using Turnbuckles


How Should Turnbuckles Be Used in Rigging, According to ASME Standards? - Factors to Consider When Using Turnbuckles

In order to prevent undue damage to the markings or the turnbuckles themselves, there are many steps to consider before using rigging hardware for overhead lifts.

As an end-user, you want to pay attention to the effects of the environment in which your rigging gear is used, including the following:

  • Temperature
  • Chemically Active Environments
  • Training
  • Storage and Work Environments

Temperature

When adjustable hardware, excluding swivel hoist rings and carbon steel eyebolts, is to be used at temperatures above 400°F (204°C) or below -40°F (-40°C), the hardware manufacturer or a qualified person should be consulted.

When carbon steel eyebolts are to be used at temperatures above 275°F (135°C) or below 30°F (-1°C), the hardware manufacturer or a qualified person should be consulted.

Chemically Active Environments

The strength of adjustable hardware can be affected by chemically active environments such as caustic or acidic substances or fumes. The adjustable hardware manufacturer or a qualified person should be consulted before use in chemically active environments.

Training

Adjustable hardware users shall be trained in the selection, inspection, cautions to personnel, effects of environment, and rigging practices.

Storage and Work Environments

Adjustable hardware should be stored in an area where it will not be subjected to damage, corrosive action, or extreme heat.

If extreme temperatures or chemically active environments are involved, the guidance provided in the above sections discussing temperature and chemically active environments shall be followed.

Inspections of Turnbuckles


How Should Turnbuckles Be Used in Rigging, According to ASME Standards? - Inspection of Turnbuckles

Like other types of rigging hardware, turnbuckles are required to have three types of inspections, where identification markings will be closely examined for legibility. Examining the identification markings is one of the many steps that must be taken during the following types of inspections:

  • Initial inspections
  • Frequent inspections
  • Periodic inspections

General

All inspections shall be performed by a designated person. Any deficiencies identified shall be examined and a determination made by a qualified person as to whether they constitute a hazard.

Initial Inspection



Prior to use, all new, altered, modified, or repaired adjustable hardware shall be inspected to verify compliance with the applicable provisions of this Chapter. Written records are not required.

Frequent Inspection

A visual inspection shall be performed each shift before the adjustable hardware is used. Rigging hardware in semi-permanent and inaccessible locations where frequent inspections are not feasible shall have periodic inspections performed.

Conditions such as those listed in para. 26-2.8.5 or any other condition that may result in a hazard shall cause the adjustable hardware to be removed from service. Adjustable hardware shall not be returned to service until approved by a qualified person.

Written records are not required.

***Paragraph 26-2.8.5 outlines the removal from service criteria for turnbuckles listed below!

Periodic Inspection

A complete inspection of the adjustable hardware shall be performed. The adjustable hardware shall be examined for conditions such as those listed in para. 26-2.8.5 and a determination made as to whether they constitute a hazard.

Periodic Inspection Frequency

Periodic inspection intervals shall not exceed one year. The frequency of periodic inspections should be based on:

  • Frequency of use
  • Severity of service conditions
  • Nature of lifting or load-handling activities
  • Experience gained on the service life of adjustable hardware used in similar circumstances
  • Guidelines for the time intervals are
    • Normal service — yearly
    • Severe service — monthly to quarterly
    • Special service—as recommended by a qualified person

Written records are not required.

Removal From Service Criteria for Turnbuckles


Adjustable hardware shall be removed from service if conditions such as the following are present and shall only be returned to service when approved by a qualified person:

  • Missing or illegible identification
  • Indications of heat damage, including weld splatter or arc strikes
  • Excessive pitting or corrosion
  • Bent, twisted, distorted, stretched, elongated, cracked, or broken load-bearing components
  • Excessive nicks or gouges
  • A 10% reduction of the original or catalog dimension at any point
  • Excessive thread damage or wear
  • Evidence of unauthorized welding or modification
  • Other conditions, including visible damage, that cause doubt as to continued use

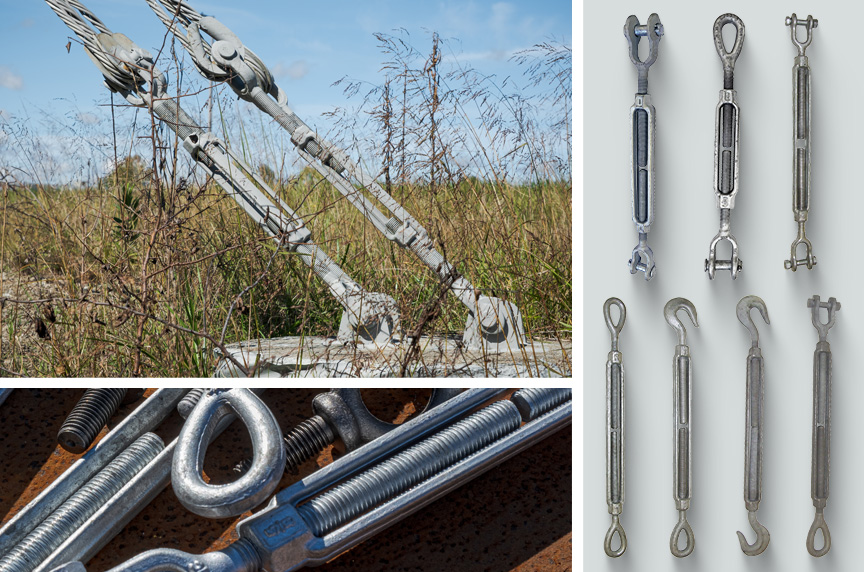

How Can Mazzella Help with Your Turnbuckles?
